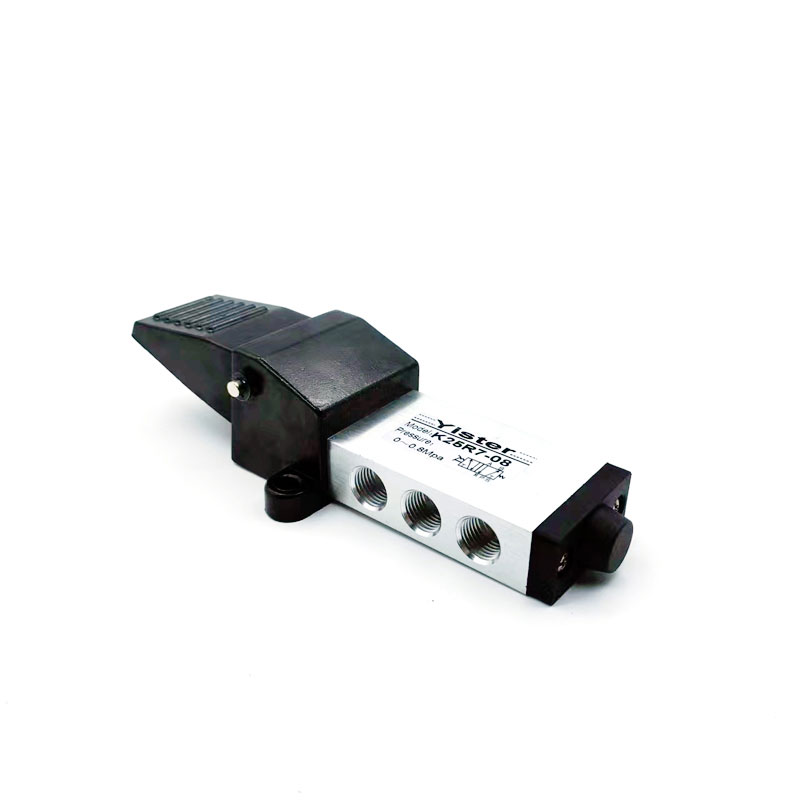

K23R7 K25R7 foot pedal valve
K23R7-08, K25R7-08 series manual control two-position three-way and two-position five-way Pneumatic foot pedal valve

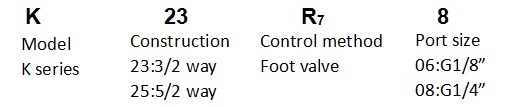

Order code

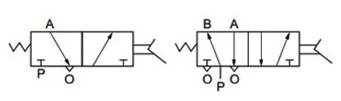

Symbol
Technical parameter
Model No
K23R7-06
K25R7-06
K23R7-08
K25R7-08
Fluid
Air
Port size
06:G1/8”
08:G1/4”
Valve type
3/2 way
5/2 way
Pressure range
0.05~0.8Mpa
Temperature
-5~50℃
Net sectional area
10mm²
Leakage rate
≤50cm²/min

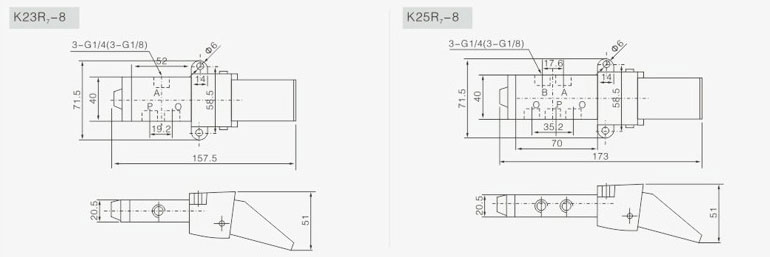

Dimension
Feature
K23L7 K25L7 pneumatic foot valve adopts manual control reversing valve, the function of the valve is subdivided into two-position three-way and two-position five-way, with small size, beautiful appearance, and panel installation.
Port size: G1/8" G1/4"
Working pressure: 0-0.8MPa
Applicable temperature: -5-60℃
installation and use
Pay attention to check the components before use, whether they are damaged during transportation, and then install and use
When installing, please pay attention to the gas flow direction and whether the connection is correct
Please pay attention to dust, it is recommended to install a muffler or a muffler throttle valve in the exhaust hole.
When connecting the pipeline, pay attention that the anti-diarrhea belt winding should not exceed the tooth end face, and pay attention to eliminate the metal particles, dust and oil in the pipe joints and pipes
