2V Series Solenoid Valve and units
2V025-06/08 2 Way Normally Closed Pneumatic Electric Solenoid Air Valve with multi stations
Symbol

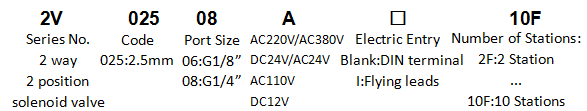

Order code
Technical parameter
Model
2V025-06
2V025-06-10F
2V025-08
Fluid
Air. Water. Oil
Acting
Direct acting
Initial state
2.5
2.5
2.5
Orifice size
0.23
0.23
0.25
Port size
G1/8
G1/8
G1/4
Viscosity limit
Under 20CST
Pressure range
0-1.0MPa(0~145psi)
0-1.0MPa(0~145psi)
0·05-1.0MPa(7~145psi)
Proof pressure
1.5MPa(215psi)
Material of body
Aluminum Alloy
Seal material
NBR
Response speed
<0.05s

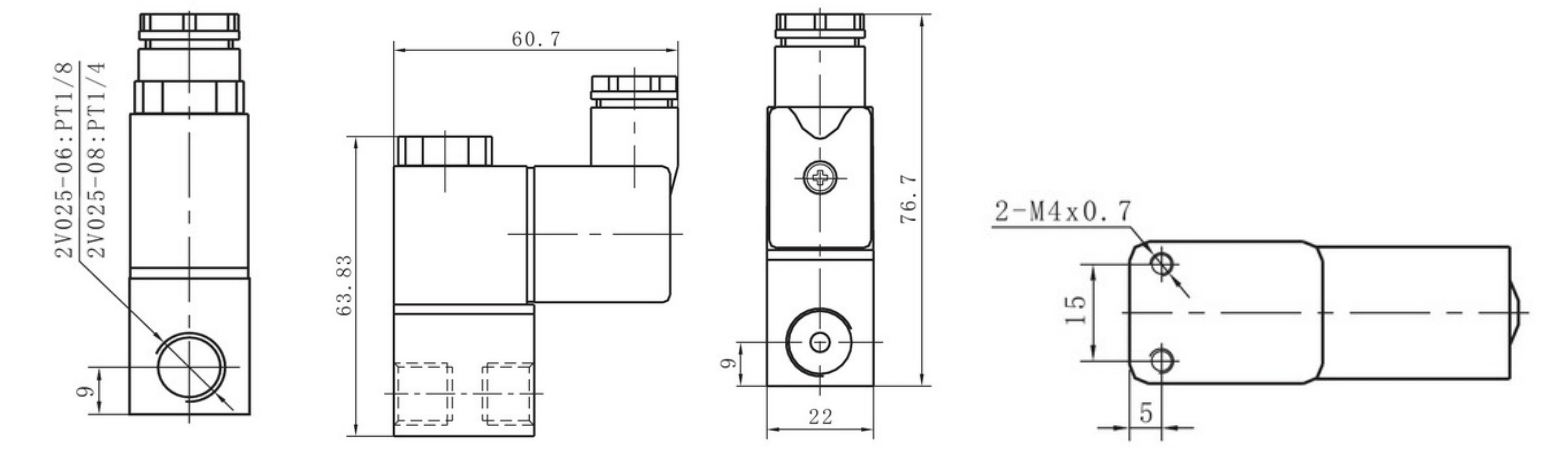

Drawing
Feature
.2V025-08 Solenoid Valves（2 Way Normally Closed ）
.DC24V/1/4NPT（Please air in the direction of the arrow above the product）
.2v025-08 has high precision pilot head, up to 5 times/second response speed, suitable for a wide range of, responsive, smooth work, high-speed use without jam.
