flow contro valve/check valve -
KA check valve KA check valve
PRODUCT PARAMETER

Aluminum Alloy Pneumatic One-way non-return check valve KA06 KA08 KA10 KA15 KA220 KA25

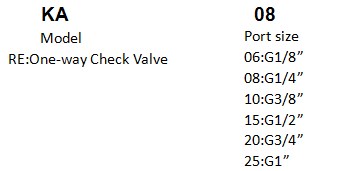

Order code


Symbol


Technical parameter

Model No

KA06

KA08

KA10

KA15

KA20

KA25

Fluid

Air for pneumatic non-return valve

Port size

G1/8

G1/4

G3/8

G1/2

G3/4

G1

Orifice size

10

20

40

60

100

190

Pressure range

0.15-0.8MPa

Proof pressure

1.5MPa

Temperature

-20℃~70

Body material

Aluminum alloy

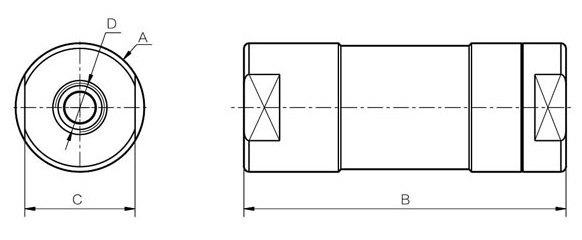

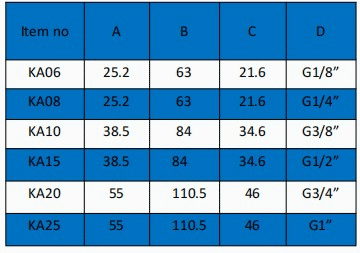

Dimension



Feature

KA Series Check valves are commonly used armatures that can be applied for liquid, gases and steam applications.
KA Series One-way Non-return check valves provide the flows just one way. When liquid flows through to flowing direction
