Foot Valves -
FV-420 320 foot pedal valve  FV-420 320 foot pedal valve
PRODUCT PARAMETER

G1/4 3/2 way normally closed pneumatici foot pedal valve FV-320 FV-420

Order code


Symbol


Technical parameter

Model No

FV320

FV420

Fluid

Air

Acting

Direct acting type

Port size

06:G1/8

08:G1/4

Valve type

3/2 way

4/2 way

Pressure range

0-0.8MPa

Temperature

-5℃~60℃

Lubrication

No required

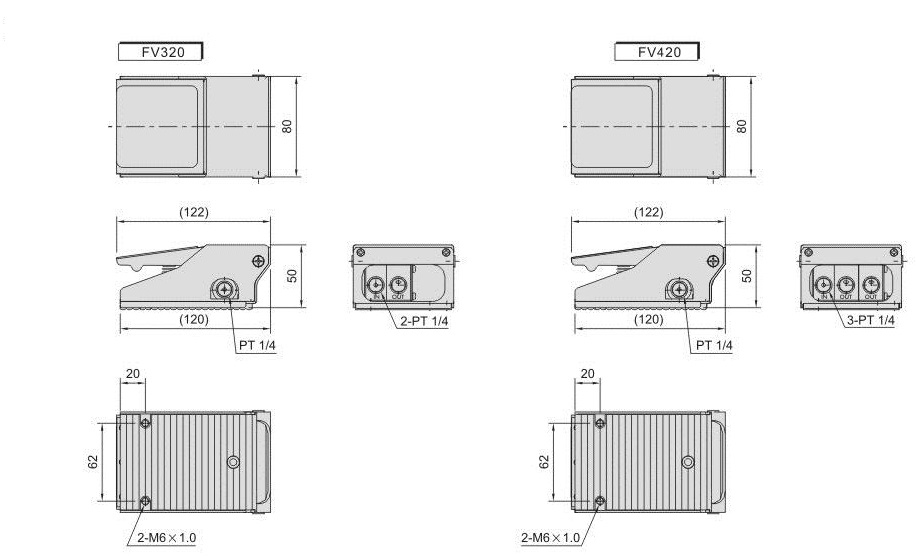

Dimension


Feature

FV320 FV420 foot pedal valve is ideally suited to control spring or loaded return pneumatic cylinders allowing pressurized extension and vented retraction or single-directional pneumatic motors allowing control only in a single direction

FV320 can simply control the air source unit on or off

FV420 foot switches could be used in a range of gas control products, such as automotive and automation equipment, without the need to pass electricity.
