3FM210 foot pedal valve
3FM210 3 way 2 position foot-operated air directional control valve

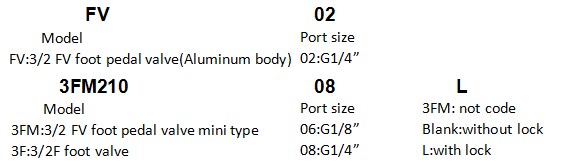

Order code
Symbol
Technical parameter
Model
FV-02
3F210-06
3FM210-06
3F210-08
3F210-08L
Fluid
Air
Acting
Direct acting type controlled by foot normally closed
Port size
G1/4”
G1/8”
G1/8”
G1/4”
G1/4”
Valve type
3/2 way
Pressure range
0-0.8MPa
Proof pressure
1.5MPa
Temperature
-20℃~70℃
Body material
FV:Aluminum alloy ;3FM:Plastic ;3F:Aluminum alloy
Lubrication
No required

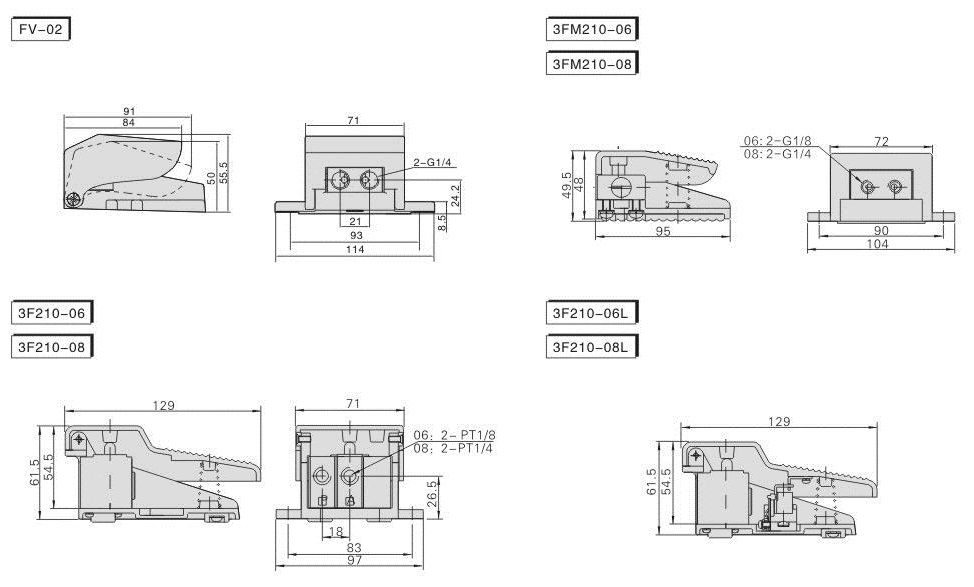

Dimension
Feature
Direct acting and normally closed type;
The 3F series has aluminum foot pedal and 3FM series has plastic foot pedal, in direct acting type, horizontal and compact structure;
If the duration of direction-change is long, the valves with lock may be used;
The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact.
