Mechanical Valves -
MV522 Series MV-08 Mechanical Valves MV522 Series MV-08 Mechanical Valves
PRODUCT PARAMETER

5 Port 2 Way Airtac replacement Mechanical Pneumatic Valve MV-09 MV-08 MV-10 MV-10A

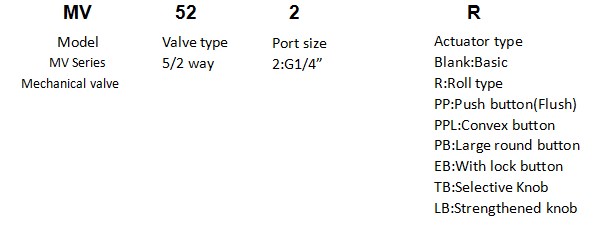

Order code

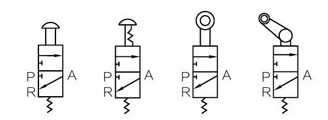

Symbol


Technical parameter

Item No.

MV522

MV522R

(MV-09)

MV522PP

MV522PPL

MV522PB

(MV-10A)

MV522EB

(MV-10)

MV522TB

(MV-08)

MV522LB

Fluid

Air

Operating press range

0-0.8 Mpa

Ambient and fluid temperature

-5 to 60

Port size

1/4

Operation type

Direct acting

Lubrication

Not required

Dimension


Feature

  • MV-10 MV-10A is identical in size, actuating style, and mounting characteristics to most industrial type electric limit switches
  • MV-08 could be used in place of electric limits to save on hookup cost and to eliminate spark hazard
  • Simplify circuits by eliminating the need for wire shielding, transformers and solenoids
  • Type:Roller type pneumatic valve MV-09 (MV522R),MV522 Basic type air operated valve,MV522PP Flat head push button valve, MV-10(MV522TB) Locking hand control valve,MV-08(MV522TB) Rotary type mechanical operated valve
