Mechanical Valves -
MV322 Series Mechanical Valves MV322 Series Mechanical Valves
PRODUCT PARAMETER

MV322 Series Mushroom head reset pneumatic mechanical valve MV322PB MV322EB

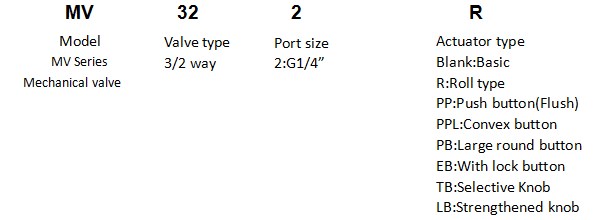

Order code

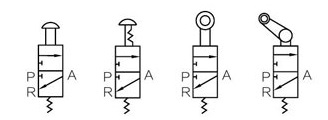

Symbol


Technical parameter

Item No.

MV322

MV322R

MV322PP

MV322PPL

MV322PB

MV322EB

MV322TB

MV322LB

Fluid

Air

Operating press range

0-0.8 Mpa

Ambient and fluid temperature

-5 to 60

Port size

1/4

Operation type

Direct acting

Lubrication

Not required

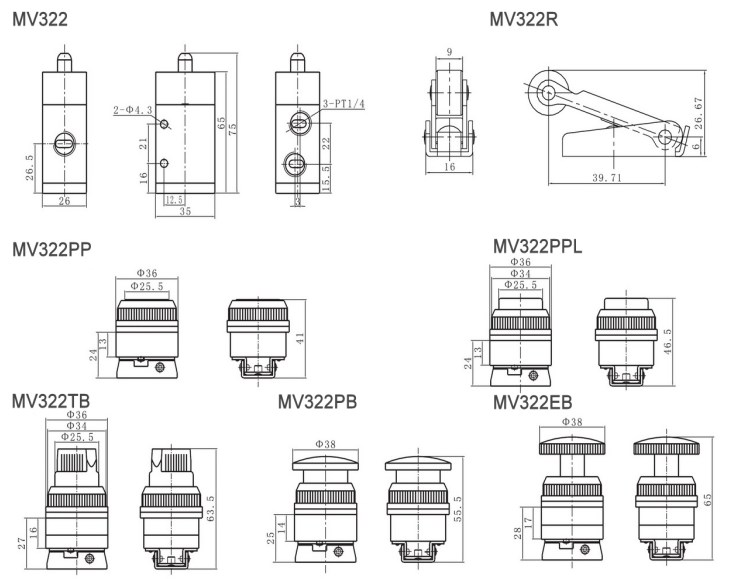

Dimension


Feature

Mushroom head color:Red Green Yellow Black

Working medium for MV322 mechanical valve: 40 Micron Filtered Air
Position & Way no: Two-position and Three-Way
Port Size: G1/4"
Working Pressure Range: 0~0.8MPa
