Mechanical Valves -
MOV321 Series Mechanical Valves MOV321 Series Mechanical Valves
PRODUCT PARAMETER

MOV321 series Machinery Valve 3 Way 2 Postion Pneumatic mechanical operated valve

Order code

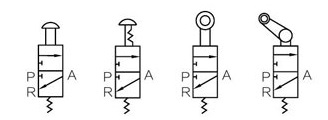

Symbol


Technical parameter

Item No.

MOV321

MOV321R

MOV321PP

MOV321PPL

MOV321PB

MOV321EB

MOV321TB

MOV321LB

Fluid

Air

Operating press range

0-0.8 Mpa

Ambient and fluid temperature

-5 to 60

Port size

1/4

Operation type

Direct acting

Lubrication

Not required

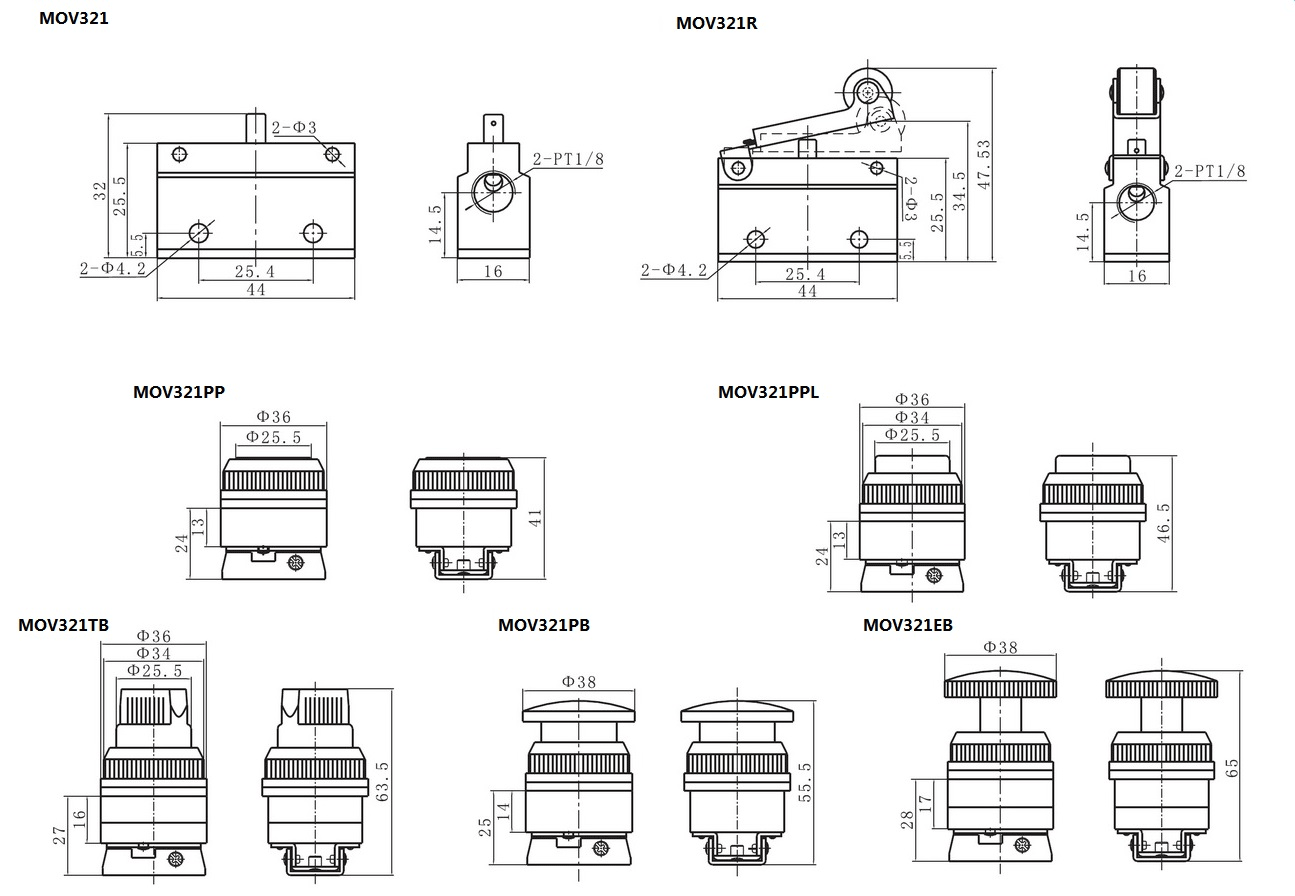

Dimension


Feature

MOV-02 MOV-321 PT 1/8"Female Thread 3 Position 2 Way Pneumatic Mechanical Valve MOV321PPL MOV321PB MOV321EP MOV321TB,Valve body is machined by automatic CNC to make sure all the dimensions accurate.
