M5 Series Mechanical Valves M5 Series Mechanical Valves
PRODUCT PARAMETER

M5 Series 5 port 2 way Manual operated Mechanical valve

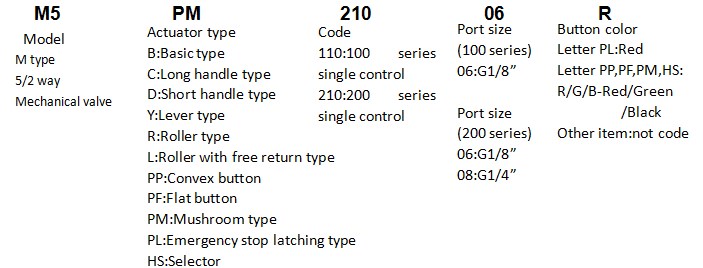

Order code

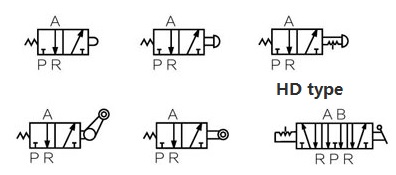

Symbol


Technical parameter

Item No.

M5B

M5C

M5D

M5R

M5L

M5Y

M5PM

M5PP

M5PF

M5PL

M5HS

Fluid

Air

Operation type

External control

Pressure range

0-1.0 Mpa

Proof pressure

1.5Mpa

temperature

-20 to 70

Valve type

5 port 2 position

Port size

06:G1/8 08:G1/4

Orifize size

110 :06:8.0mm2 210 : 06:9.0mm2, 08:12.0mm2

Lubrication

Not required

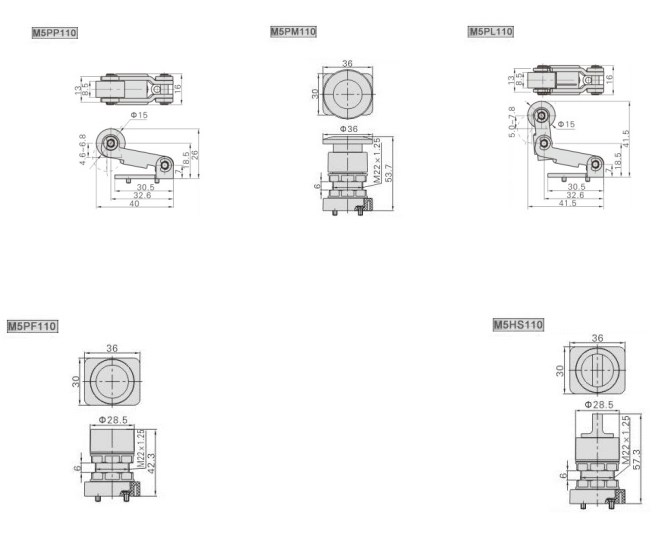

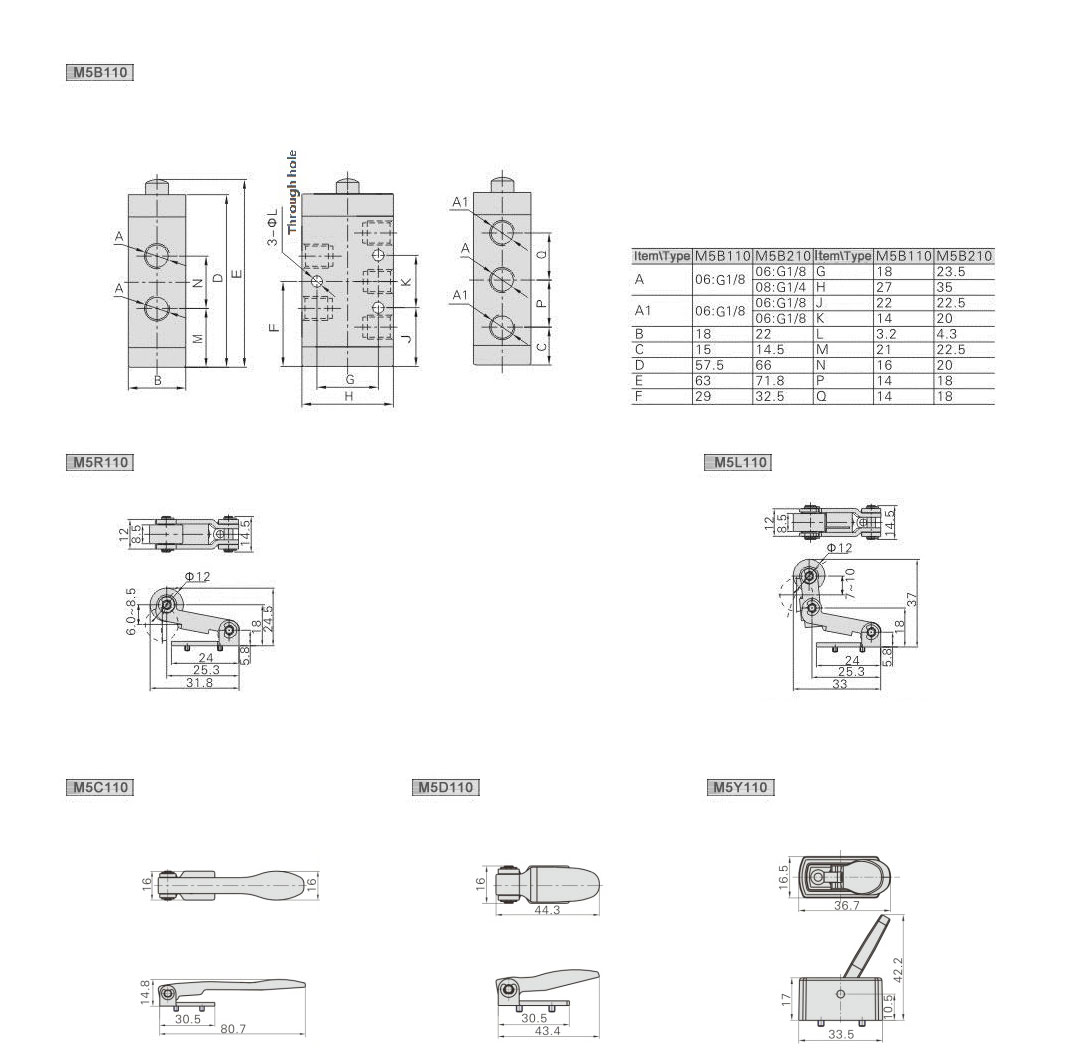

Dimension



Feature

Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.
The external force required by direction-change of series of M5B, M5R and M5L is provided by external mechanism, which can be position test or [stroke switch] limit switch
M5C, M5D, M5Y, M5PF, M5PM, M5PP, M5PL and M5HS are operated manually, owning control joints with several structure forms and suitable for application under different conditions.
It is in sliding column structure that control force is not influenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.

Lubricant is not necessary.
Multi-mounting makes it convenient to install and apply.
The control joints of series of M5C, M5D, M5Y, M5R and M5L are made of metal which has longer service life and more reliable and steady performance.
