Mechanical Valves -
M3 Series Mechanical Valves M3 Series Mechanical Valves
PRODUCT PARAMETER

3 port 2 way M3 mechanical valve M3PL M3PP M3PF M3PM M3HS M3B

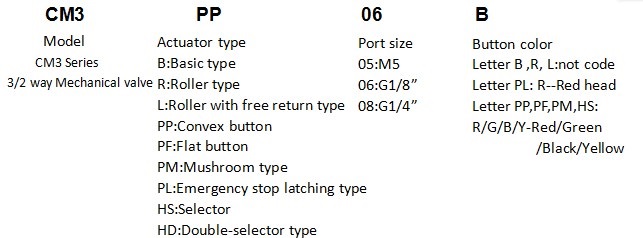

Order code

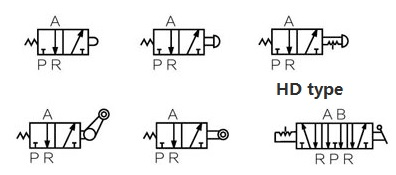

Symbol

Technical parameter

Item No.

CM3-05

CM3-06

CM3-08

Fluid

Air

Operation type

External control

Pressure range

0-1.0 Mpa

Proof pressure

1.5Mpa

Ambient and fluid temperature

-20 to 70

Valve type

3 port 2 position

Port size

M5*0.8

1/8

1/4

Orifize size

2.0mm2

2.5mm2

15.0mm2

Cv value

0.11

0.14

0.84

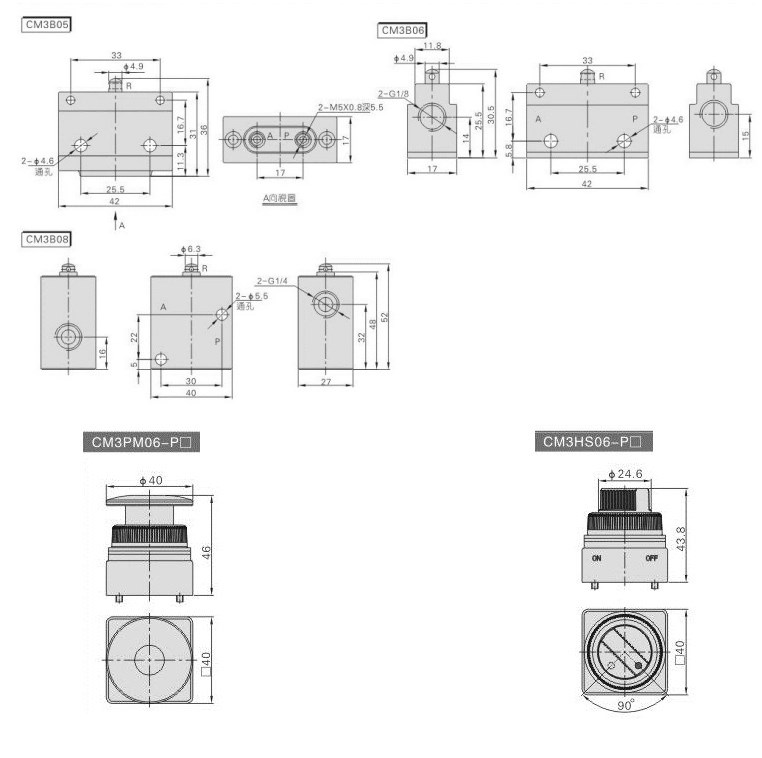

Dimension


Feature

M3PP M3PF M3HS  mechanical valves are 3 way, 2 position valves that are available with M5 ports, 1/8 ports, and 1/4 ports.  The M3 valve series with the threaded exhaust ports allows piping of exhaust air and installation of noise reducing mufflers.
