Mechanical Valves -
JMJ Series Mechanical Valves JMJ Series Mechanical Valves
PRODUCT PARAMETER

JMJ series 5 port 2 way direct action Pneumatic Mechanical valves JMJ-01 JMJ-02 JMJ-03

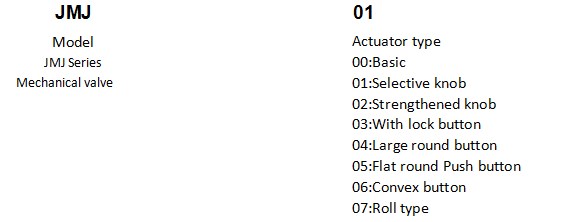

Order code

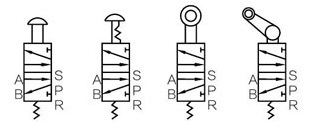

Symbol


Technical parameter

Item No.

JMJ-00

JMJ-07

JMJ-05

JMJ-06

JMJ-04

JMJ-03

JMJ-01

JMJ-02

Fluid

Air

Operating press range

0-0.8 Mpa

Ambient and fluid temperature

-5 to 60

Port size

1/4

Operation type

Direct acting

Lubrication

Not required

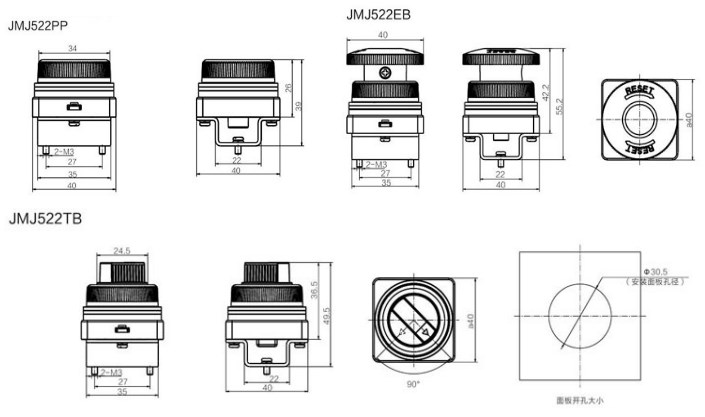

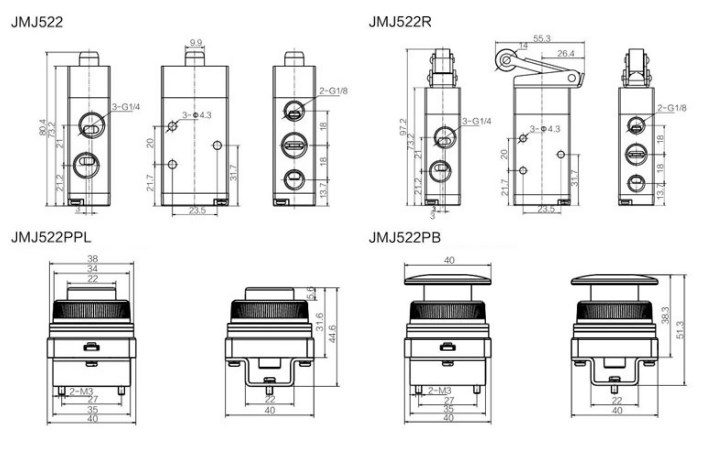

Dimension



Feature

JMJ series mechanical valve is direct acting, working by outside mechanical force to control directional switch,when outside force disappear,Actuator return to original situation.Mechanical control valve have memory function,Lubricant is not necessary.
