Solenoid valve -
VF5420(DS5420) Soleniod Valve VF5420(DS5420) Soleniod Valve
PRODUCT PARAMETER

VF5420/DS5420 3 way air solenoid valve 220v

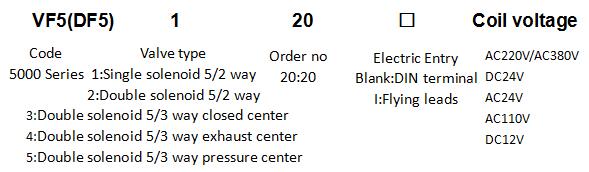

Order code

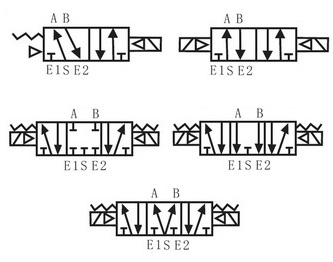

Symbol

Technical Parameter

Model

VF5120(DS5120)

VF5220(DS5220)

VF5320(DS5320)

VF5420(DS5420)

VF5520(DS5520)

Fluid

Air

Acting

Internal pilot

Valve type

5/2 way

5/3 way

Orifice size

16.0mm2

16.0mm2

12.0mm2

12.0mm2

12.0mm2

Lubrication

No required

Port size

In=out=G3/8

Protective class

IP65

Pressure range

0.15-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

5℃~50℃

Response speed

<0.05s

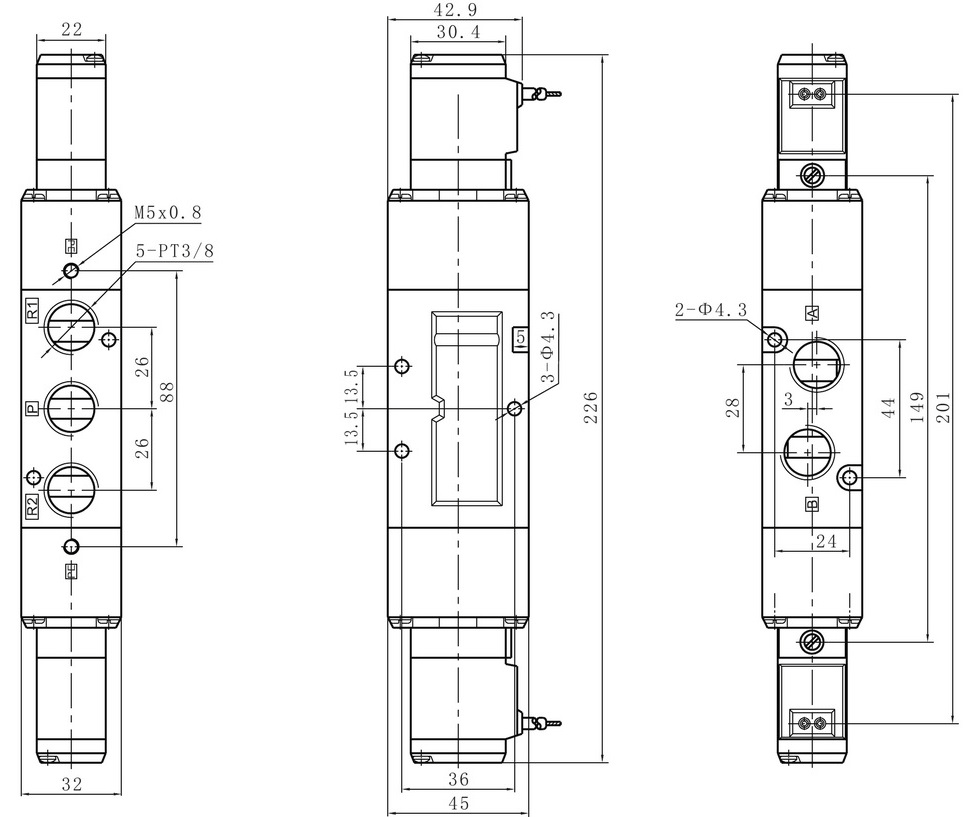

Dimension

Feature

Series VF a five port pilot solenoid valve offers large flow capacity in a compact size.

VF5420 is available in many variations including three types of manual override and four types of electrical entry. common exhaust for main valve and pilot valve is also available.
