VF5320(DS5320) Soleniod Valve
TPC type 2 way 24v solenoid control valves DS5320

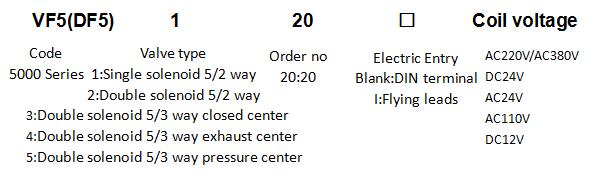

Order code

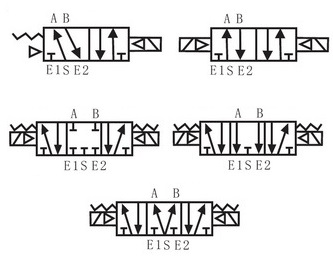

Symbol
Technical parameter
Model
VF5120(DS5120)
VF5220(DS5220)
VF5320(DS5320)
VF5420(DS5420)
VF5520(DS5520)
Fluid
Air
Acting
Internal pilot
Valve type
5/2 way
5/3 way
Orifice size
16.0mm2
16.0mm2
12.0mm2
12.0mm2
12.0mm2
Lubrication
No required
Port size
In=out=G3/8
Protective class
IP65
Pressure range
0.15-0.8MPa
Proof pressure
1.2MPa
Material of body
Aluminum Alloy
Temperature
5℃~50℃
Response speed
<0.05s

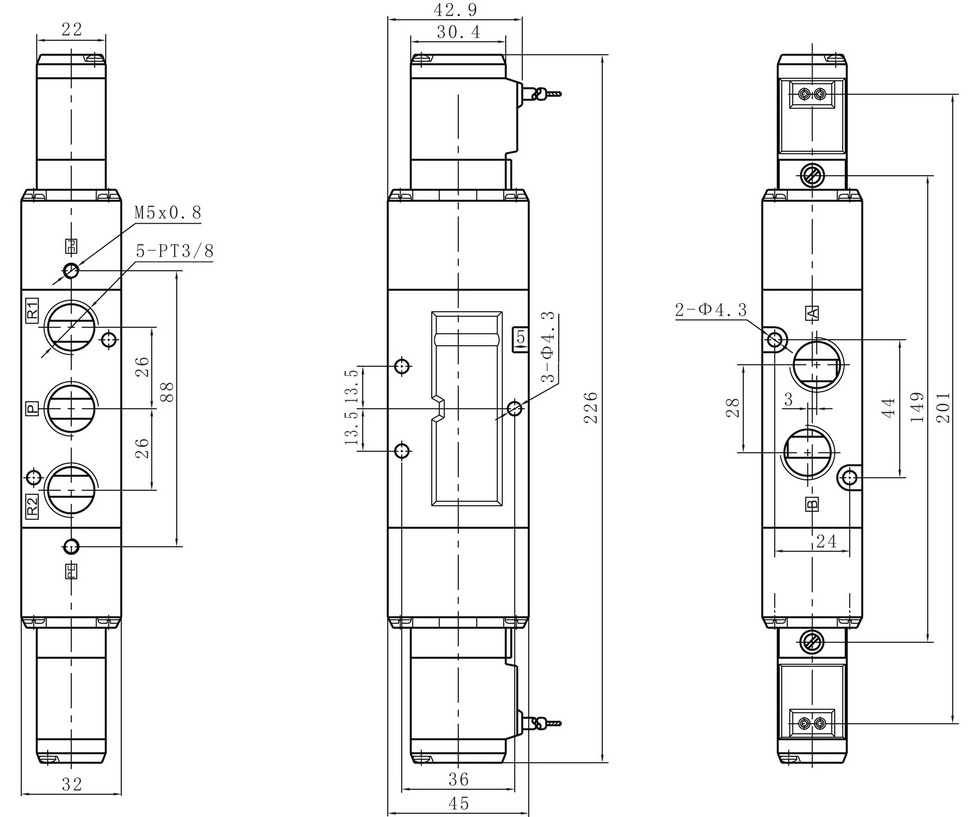

Dimension
Feature
COMPACT SIZE AND LIGHT WEIGHT
LARGE FLOW CAPACITY
LOW POWER CONSUMPTION
DESIGNED FOR NON-LUBRICATED
SERVICE
