VF5220(DS5220) Soleniod Valve VF5220(DS5220) Soleniod Valve
PRODUCT PARAMETER

Double coil Electric Pneumatic Component Air Control Solenoid Valve VF5220/DS5220

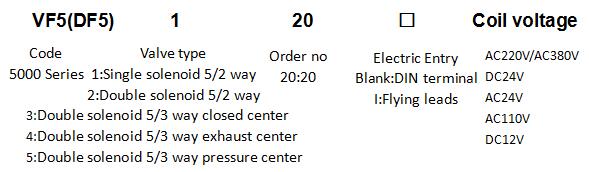

Order code

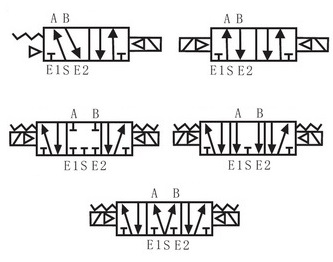

Symbol


Technical parameter

Model

VF5120(DS5120)

VF5220(DS5220)

VF5320(DS5320)

VF5420(DS5420)

VF5520(DS5520)

Fluid

Air

Acting

Internal pilot

Valve type

5/2 way

5/3 way

Orifice size

16.0mm2

16.0mm2

12.0mm2

12.0mm2

12.0mm2

Lubrication

No required

Port size

In=out=G3/8

Protective class

IP65

Pressure range

0.15-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

5℃~50℃

Response speed

<0.05s

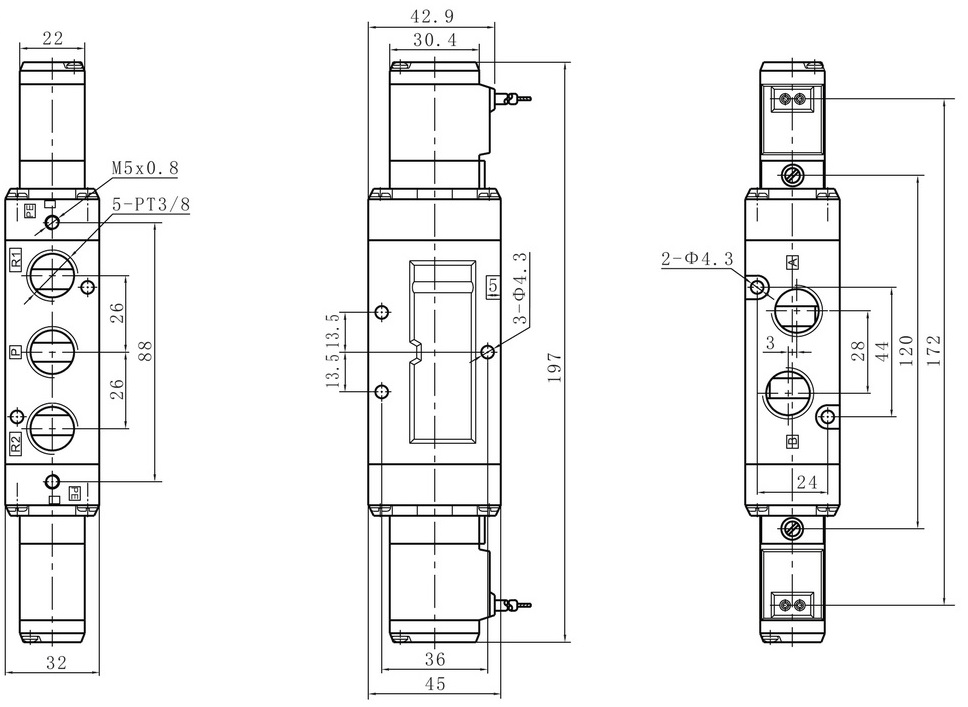

Dimension


Feature

With solenoid operated for control appropriate flow and direction, provide great performance.Stury body have a long lifespan, perfect for electrically driven pneumatic power control
