Solenoid valve -
VF3330(DS3330) Soleniod Valve VF3330(DS3330) Soleniod Valve
PRODUCT PARAMETER

VF3330 DS3330 1/4 inch electromagnetic solenoid valve

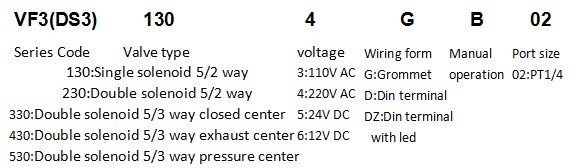

Order code

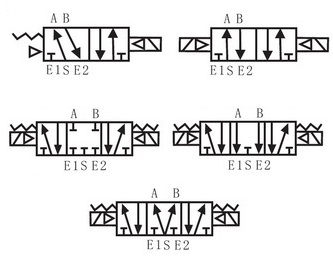

Symbol


Technical parameter

Model

VF3130(DS3130)

VF3230(DS3230)

VF3330(DS3330)

VF3430(DS3430)

VF3530(DS3530)

Fluid

Air

Acting

Internal pilot

Valve type

5/2 way

5/3 way

Orifice size

16.0mm2

16.0mm2

12.0mm2

12.0mm2

12.0mm2

Lubrication

No required

Port size

In=out=G1/4

Protective class

IP65

Pressure range

0.15-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

5℃~50℃

Response speed

<0.05s

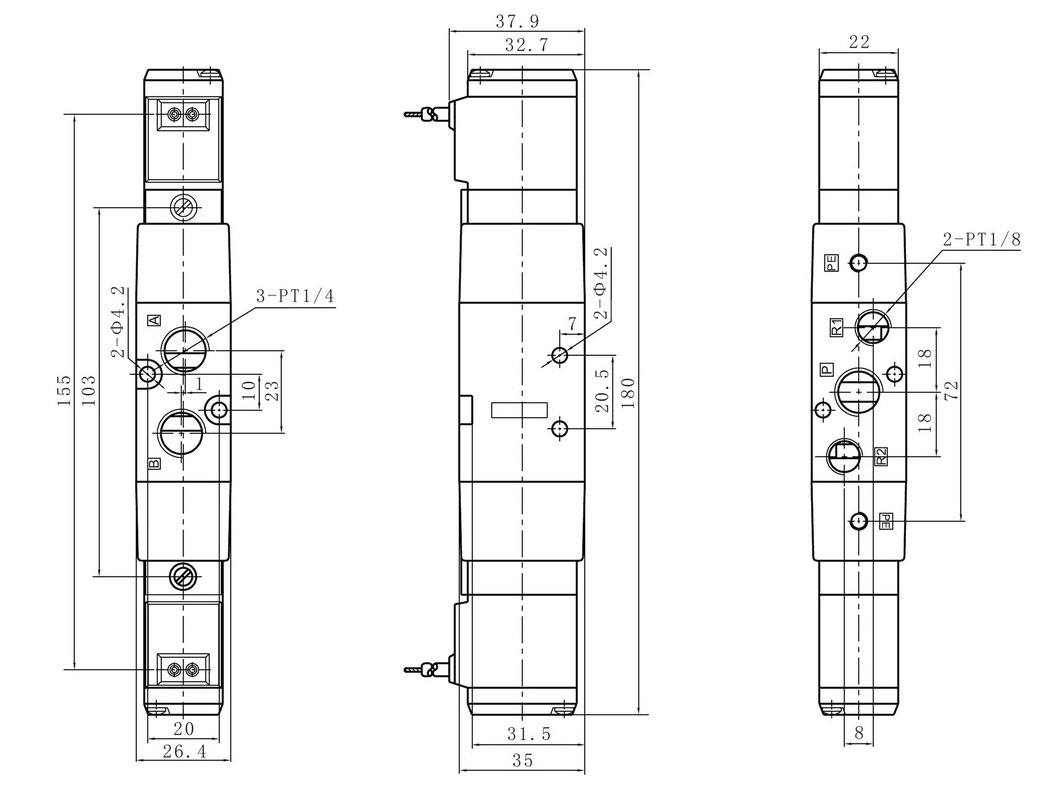

Dimension


Feature

Working medium:40 Micron Filtered Air

Working pressure:0.15~0.8MPa

Ambient Temperature:5~50℃

Insulation&Protection Class:F Class. IP65

Highest Action Frequency:5 Cycle /Sec

Shortest Excitation Time:0.05 Second

Internal hole adopts special processing technology which has little attrition friction,low star pressure and long service life.

Several standard voltage grades are optional. Working Voltage:DC12V DC24V AC110V AC220V
