VF3230(DS3230) Soleniod Valve VF3230(DS3230) Soleniod Valve
PRODUCT PARAMETER

VF3230 VF3330 5/2 Pneumatic Solenoid Valve

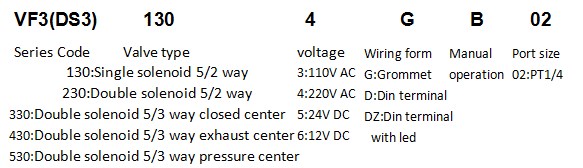

Order code

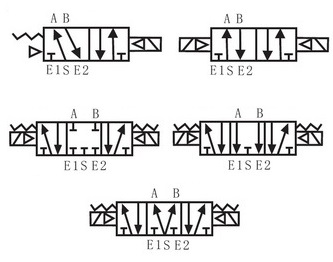

Symbol


Technical Parameter

Model

VF3130(DS3130)

VF3230(DS3230)

VF3330(DS3330)

VF3430(DS3430)

VF3530(DS3530)

Fluid

Air

Acting

Internal pilot

Valve type

5/2 way

5/3 way

Orifice size

16.0mm2

16.0mm2

12.0mm2

12.0mm2

12.0mm2

Lubrication

No required

Port size

In=out=G1/4

Protective class

IP65

Pressure range

0.15-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

5℃~50℃

Response speed

<0.05s

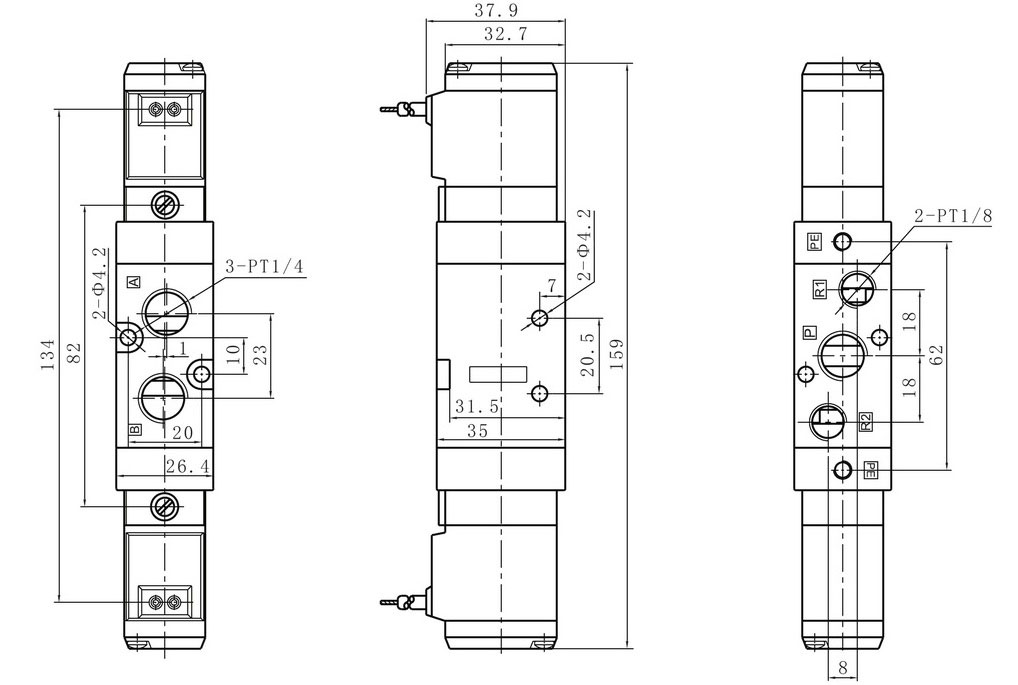

Dimension


Feature

Series VF, a five port pilot solenoid valve, offers large flow capacity in a compact size. The VF is available in many variations including three types of manual override and four types of electrical entry. Common exhaust for main valve and pilot valve is also available.
.5 port
.Body ported and base mounted types
.Built-in full-wave rectifier (AC)
.Power consumption : 1.55W standard, 0.55W with power saving circuit
