Solenoid valve -
VF3130(DS3130) Soleniod Valve VF3130(DS3130) Soleniod Valve
PRODUCT PARAMETER

24V dc VF3130 SMC type 5 Port Solenoid Valve

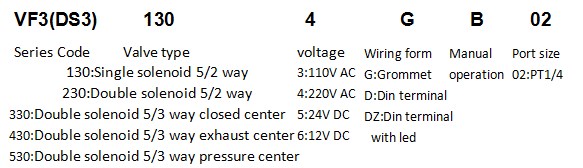

Order code

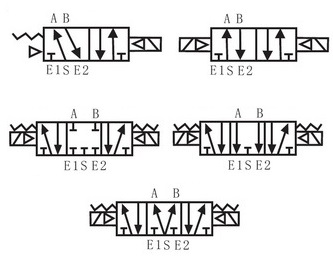

Symbol


Technical parameter

Model

VF3130(DS3130)

VF3230(DS3230)

VF3330(DS3330)

VF3430(DS3430)

VF3530(DS3530)

Fluid

Air

Acting

Internal pilot

Valve type

5/2 way

5/3 way

Orifice size

16.0mm2

16.0mm2

12.0mm2

12.0mm2

12.0mm2

Lubrication

No required

Port size

In=out=G1/4

Protective class

IP65

Pressure range

0.15-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

5℃~50℃

Response speed

<0.05s

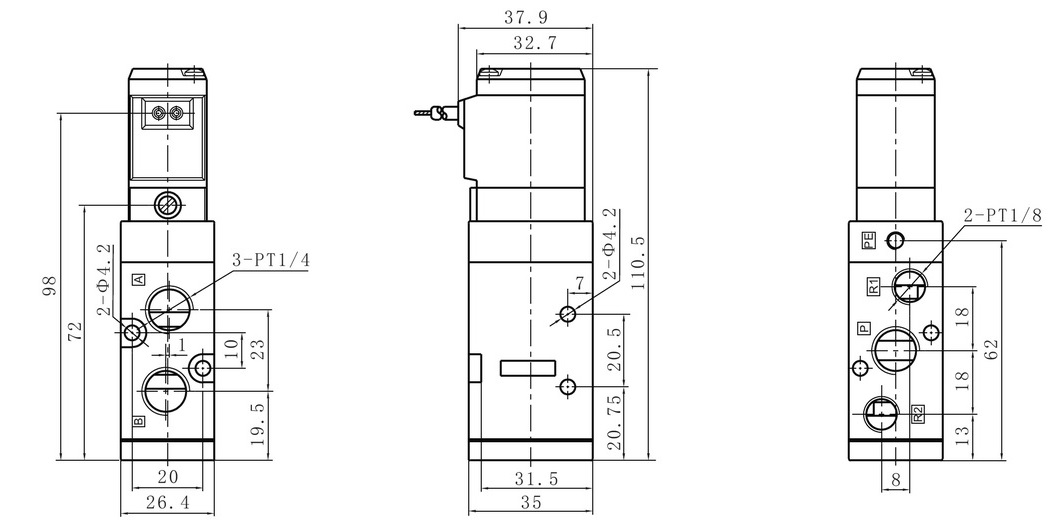

VF3130 Dimension

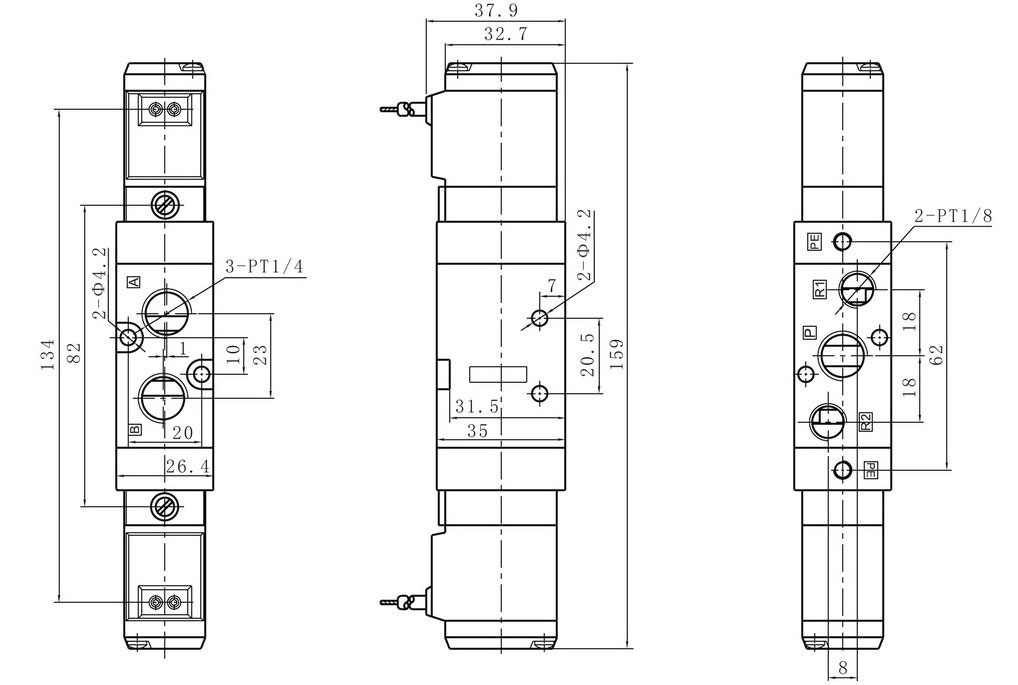

VF3230 Dimension

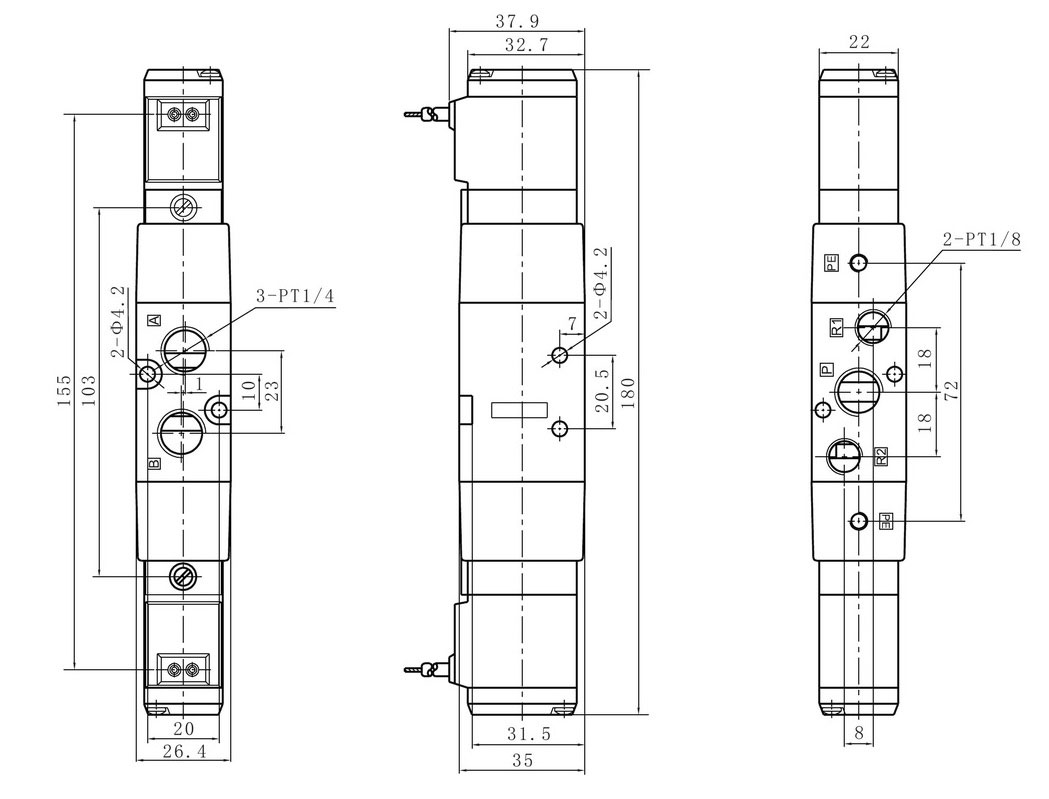

VF3330/VF3430/VF3530 Dimension


Feature

* VF series solenoid valve SMC Equivalent

* Single Acting and Double Acting for option

* Pilot Operated,Inner Pilot type

* Solenoid coil can be changeable type or non-changeable type selectable

* Model VF3130,VF3230,VF3330,VF3430,VF3530

* Din connector and outlead wire electricity connecting for selectable

* Metal lock Manual Override can be turnable with tool for positioning

* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity

* IP65 class Electromagnetic Induction Coil,low consumption,long service life
