5V200 Series Soleniod Valve 5V200 Series Soleniod Valve
PRODUCT PARAMETER

5V series pneumatic air valve 5V210-08

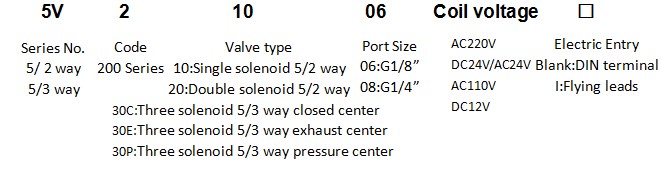

Order code

Symbol

Technical Parameter

Model

5V210-06

5V220-06

5V230-06

5V210-08

5V220-08

5V230-08

Fluid

Air

Acting

Internal pilot

Valve type

5/2 way

Orifice size

14.0mm2

16.0mm2

Lubrication

No required

Port size

In=out=G1/8

In=out=G1/4

Protective class

IP65

Pressure range

0.15-0.8MPa

Proof pressure

1.5MPa

Material of body

Aluminum Alloy

Temperature

-20℃~70℃

Response speed

<0.05s

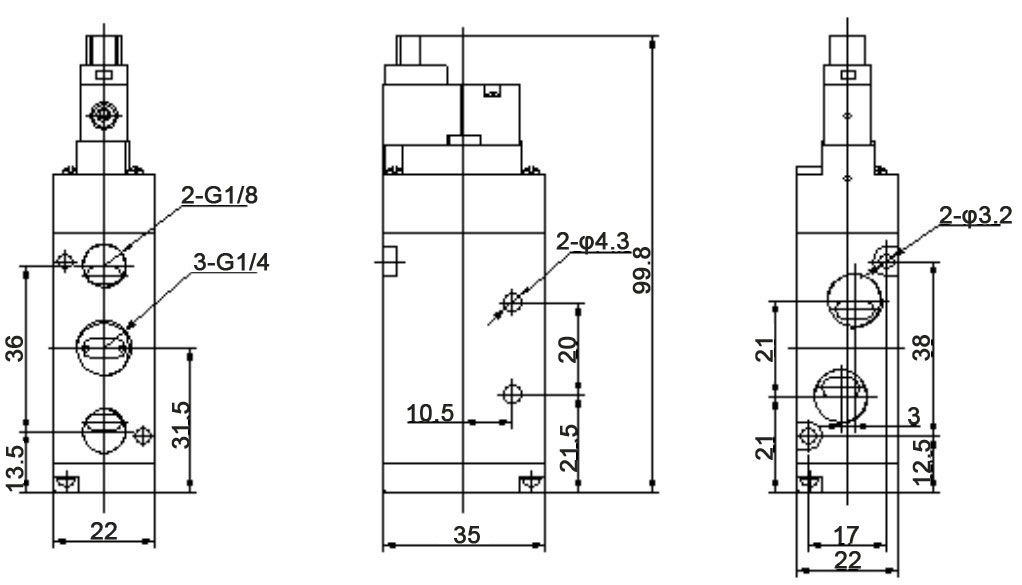

5V210 Dimension

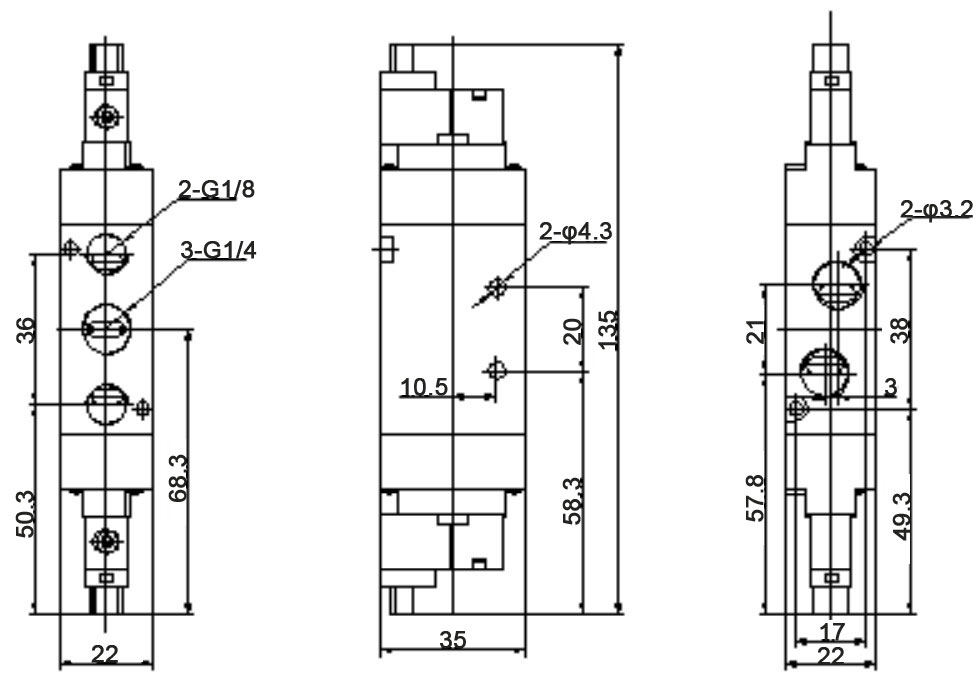

5V220 Dimension

5V230 Dimension

Feature

1.Electrical entry is terminal, horizontal and vertical insertion can freely switch.

2.Inner exhaust structure, which can collect pilot airflow, and then exhaust intensively from R,S port.

3.Die-cast molding with aluminum alloy for body, the shape of cavity is reasinable, which can increase valves flow.

4.Threaded type and quick connector type are optional, and can integrate manifold to form valve group to save space.
