24V DC 3/8 inch 4V310-10 pneumatic directional control solenoid valve

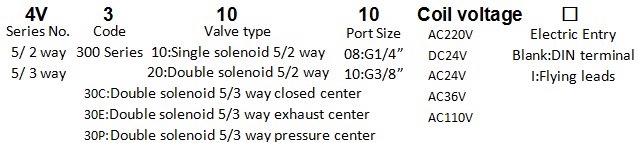

Order code

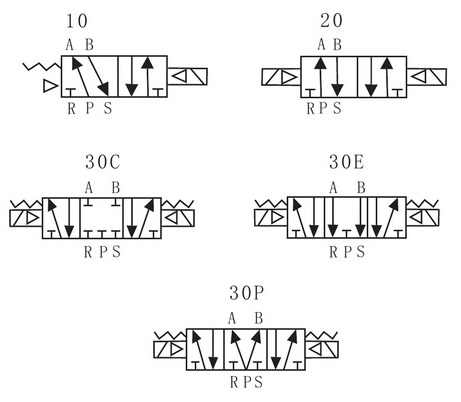

Symbol

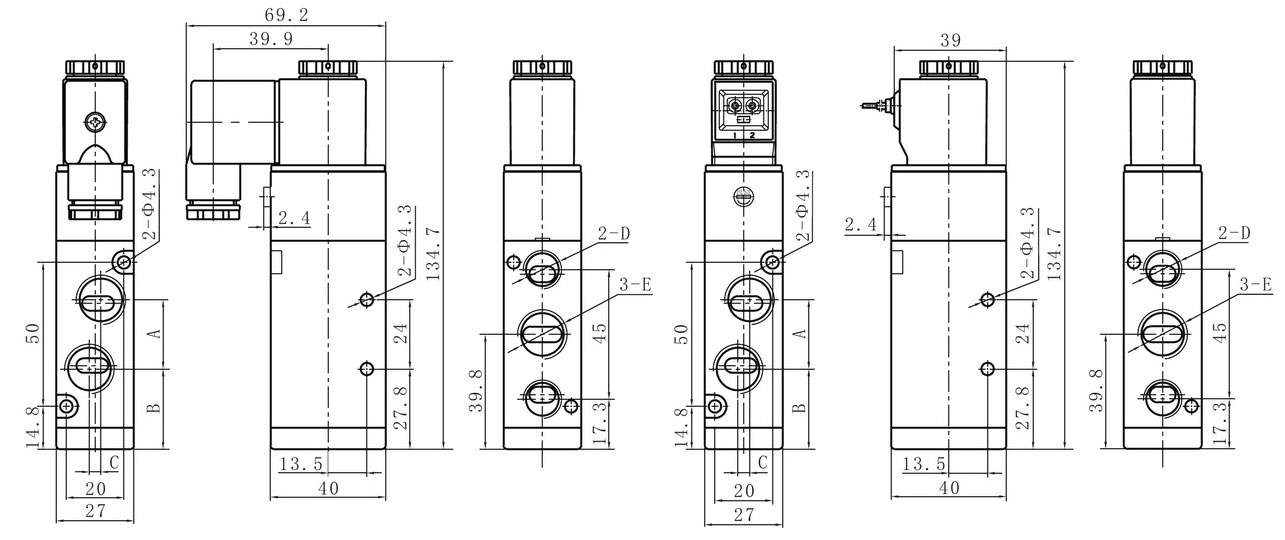

Technical Parameter
Model |
4V310-08 |
4V320-08 |
4V330C-08 |
4V330E-08 |
4V330P-08 |
4V310-10 |
4V320-10 |
4V330C-10 |
4V330E-10 |
4V330P-10 |
|
Fluid |
Air |
||||||||||
Acting |
Internal pilot |
||||||||||
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
|||||||
Orifice size |
25mm2 |
18mm2 |
30mm2 |
18mm2 |
|||||||
Lubrication |
No required |
||||||||||
Port size |
In=out=G1/4 |
In=out=G3/8 |
|||||||||
Protective class |
IP65 |
||||||||||
Pressure range |
0.15-0.8MPa(21~1145Psi) |
||||||||||
Proof pressure |
1.2MPa(170psi) |
||||||||||
Material of body |
Aluminum Alloy |
||||||||||
Temperature |
-5℃~60℃ |
||||||||||
Response speed |
<0.05s |
Terminal Grommet
Item No |
A |
B |
C |
D |
E |
4V310-08 |
22 |
28.8 |
0 |
G1/4” |
G1/4” |
4V310-10 |
24 |
27.8 |
4 |
G1/4” |
G3/8” |

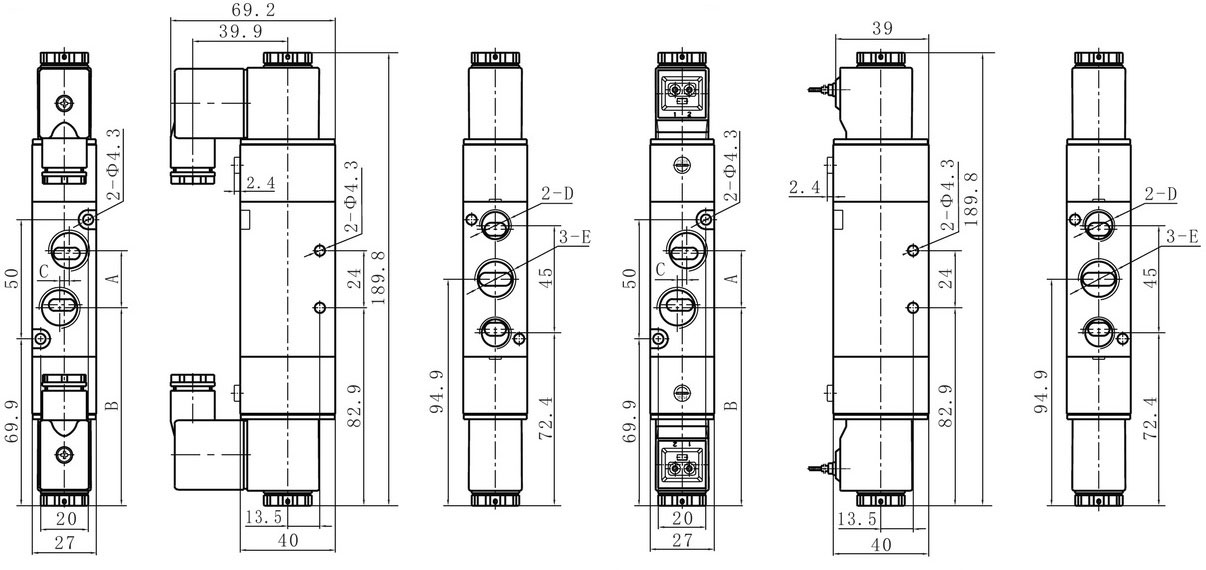

4V320 Dimension
Terminal Grommet
Item No |
A |
B |
C |
D |
E |
4V320-08 |
22 |
83.9 |
0 |
G1/8” |
G1/8” |
4V320-10 |
24 |
82.9 |
4 |
G1/8” |
G1/4” |

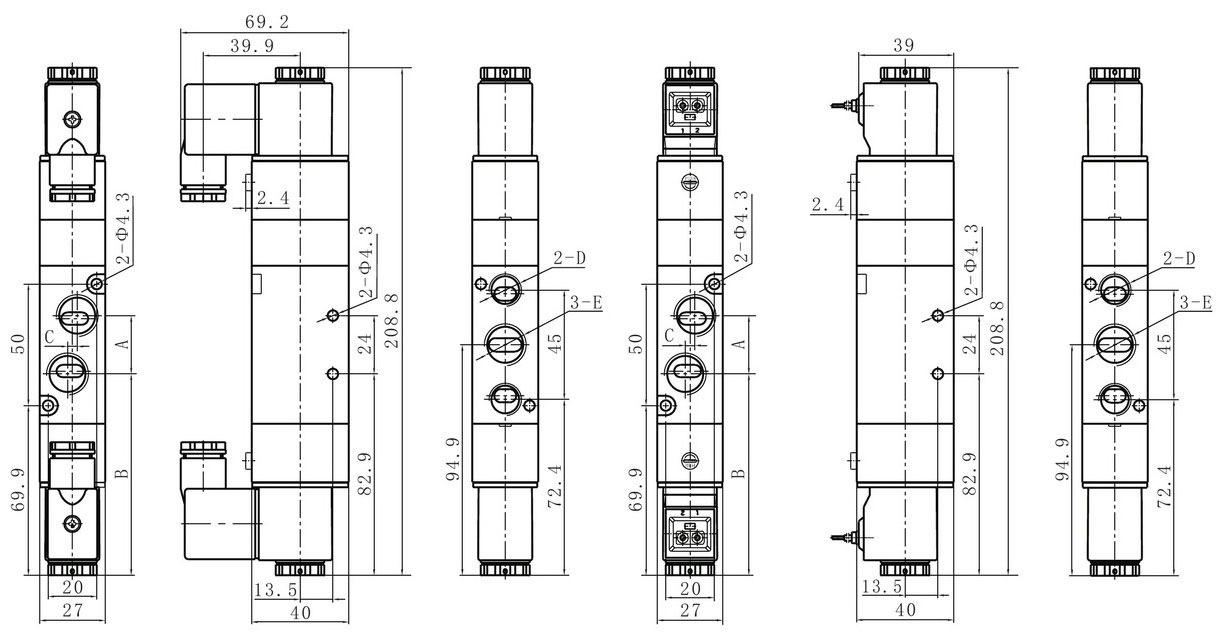

4V330 Dimension
Terminal Grommet
Item No |
A |
B |
C |
D |
E |
4V330-08 |
22 |
83.9 |
0 |
G1/8” |
G1/8” |
4V330-10 |
24 |
82.9 |
4 |
G1/8” |
G1/4” |
Feature
4V310-10 pneumatic in-line directional control electric solenoid valve is body ported spool valve. This pneumatic electric solenoid valve is operated by a ED 100% continuous duty solenoid.
4V310 Series directional control valves is a body ported mounting type and valve can be surface mounted.
4V310 Series directional control valve is commonly use to operate linear motion control components such as double acting air cylinder.
