Single coil 4V210-06 4V210-08 Pilot Operated Solenoid Valve

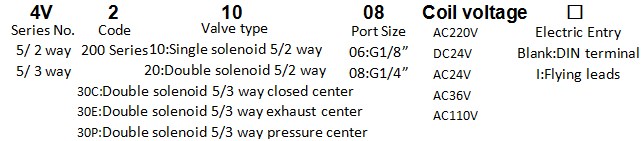

Order code

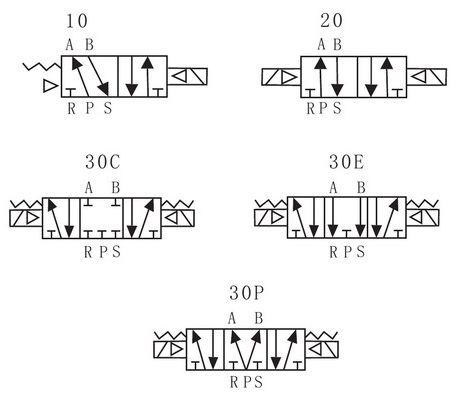

Symbol
Techanical Parameter
Model
4V210-M5
4V220-M5
4V230C-M5
4V230E-M5
4V230P-M5
4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
Fluid
Air
Acting
Internal pilot
Valve type
5/2 way
5/3 way
5/2 way
5/3 way
Orifice size
5.5mm2
5mm2
12mm2
9mm2
Lubrication
No required
Port size
In=out=M5
In=out=G1/8
Protective class
IP65
Pressure range
0.15-0.8MPa(21~1145Psi)
Proof pressure
1.2MPa(170psi)
Material of body
Aluminum Alloy
Temperature
-5℃~60℃
Response speed
<0.05s

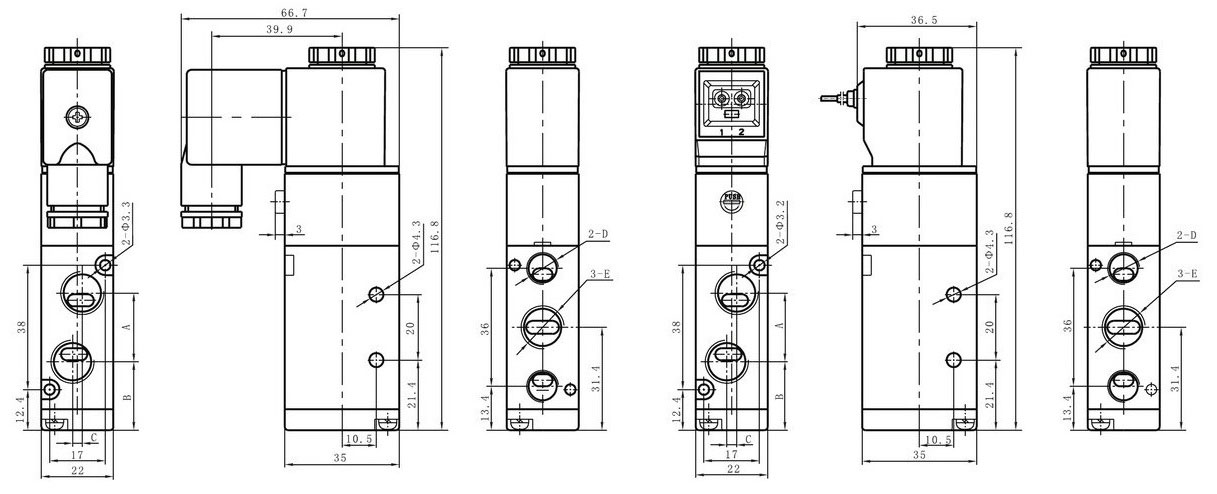

4V210 Dimension
Terminal Grommet
Item No |
A |
B |
C |
D |
E |
4V210-06 |
18 |
22.4 |
0 |
G1/8” |
G1/8” |
4V210-08 |
21 |
20.9 |
3 |
G1/8” |
G1/4” |

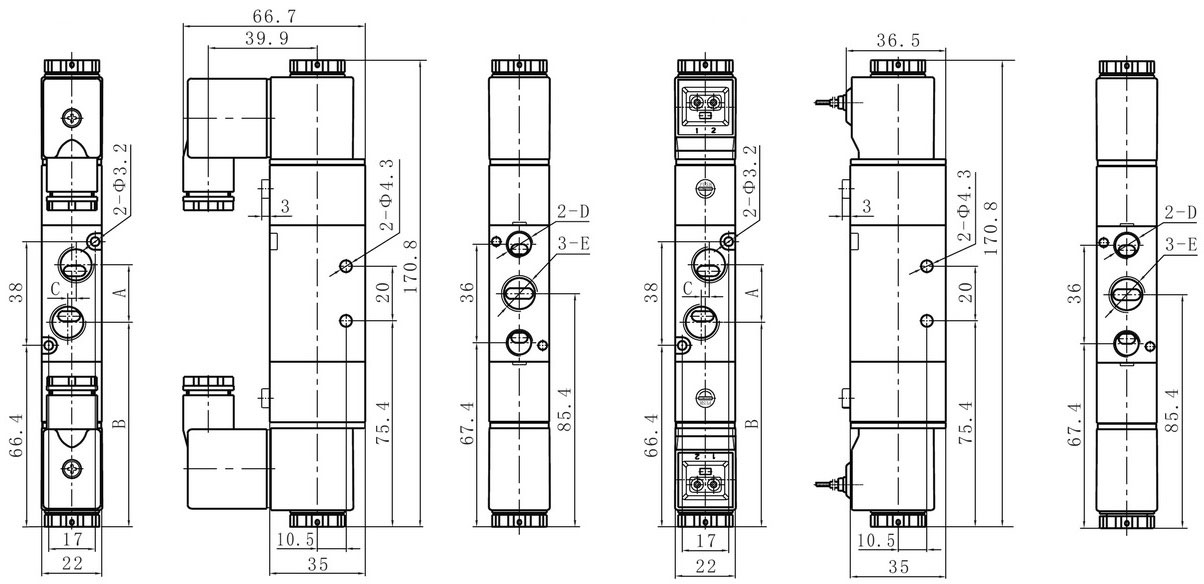

4V220 Dimension
Terminal Grommet
Item No |
A |
B |
C |
D |
E |
4V220-06 |
18 |
76.4 |
0 |
G1/8” |
G1/8” |
4V220-08 |
21 |
74.9 |
3 |
G1/8” |
G1/4” |

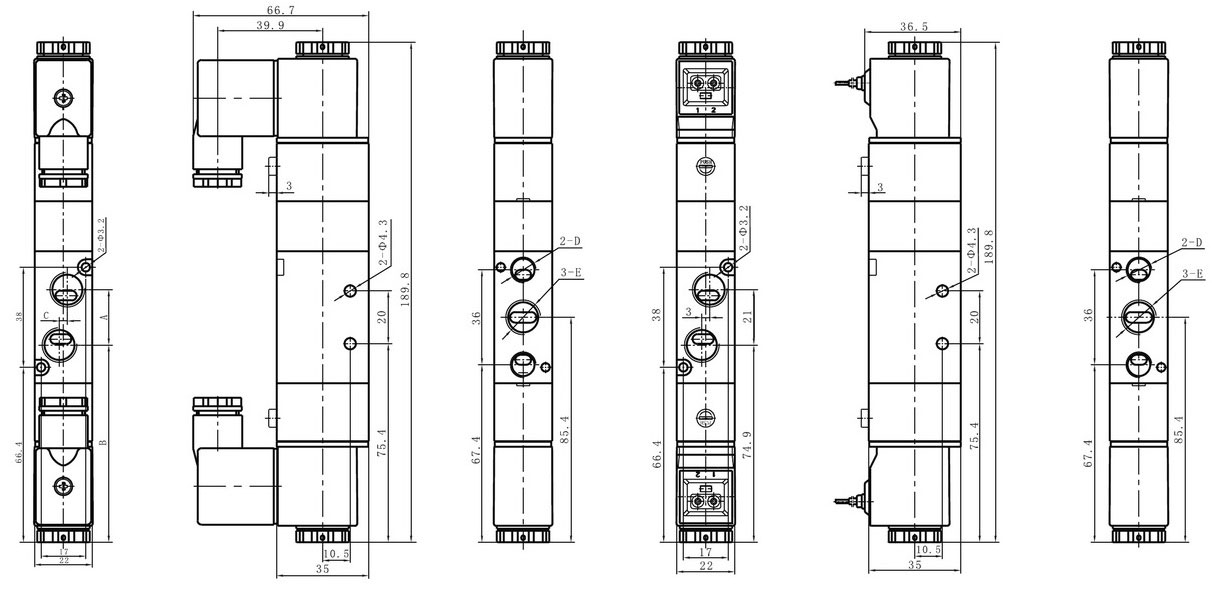

4V230 Dimension
Terminal Grommet
Item No |
A |
B |
C |
D |
E |
4V230-06 |
18 |
76.4 |
0 |
G1/8” |
G1/8” |
4V230-08 |
21 |
74.9 |
3 |
G1/8” |
G1/4” |
Feature
* Airtac Type Solenoid valve 4V Series
* Aluminum material Body width 18mm,22mm,27mm,34mm
* Pilot Operated,Inner Pilot type
* Life cycle 10000000 times
* Pipe joint and Namur joint type for option
* Din connector and outlead wire electricity connecting for selectable
* Metal Manual Override ensure stability when power failure or necessary functional motion
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
* Mature products,cost effectively
