4V100 Series Soleniod Valve
3 Position Solenoid Valve 4V110-M5/4V110-06

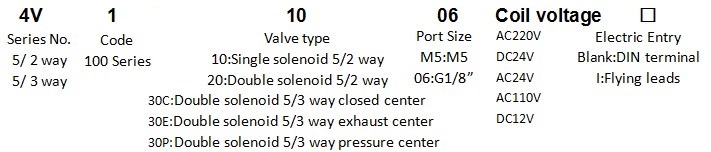

Order code

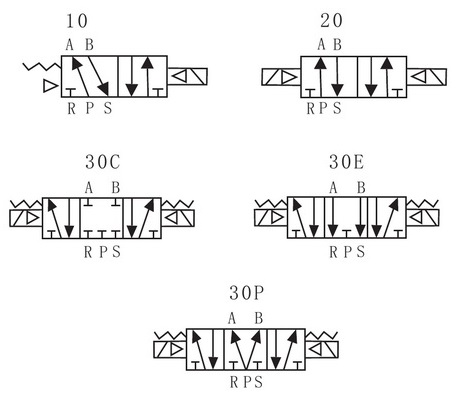

Symbol
Techanical parameter
|
Model |
4V110-M5 |
4V120-M5 |
4V130C-M5 |
4V130E-M5 |
4V130P-M5 |
4V110-06 |
4V120-06 |
4V130C-06 |
4V130E-06 |
4V130P-06 |
|
|
Fluid |
Air |
||||||||||
|
Acting |
Internal pilot |
||||||||||
|
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
|||||||
|
Orifice size |
5.5mm2 |
5mm2 |
12mm2 |
9mm2 |
|||||||
|
Lubrication |
No required |
||||||||||
|
Port size |
In=out=M5 |
In=out=G1/8 |
|||||||||
|
Protective class |
IP65 |
||||||||||
|
Pressure range |
0.15-0.8MPa(21~1145Psi) |
||||||||||
|
Proof pressure |
1.2MPa(170psi) |
||||||||||
|
Material of body |
Aluminum Alloy |
||||||||||
|
Temperature |
-5℃~60℃ |
||||||||||
|
Response speed |
<0.05s |
||||||||||

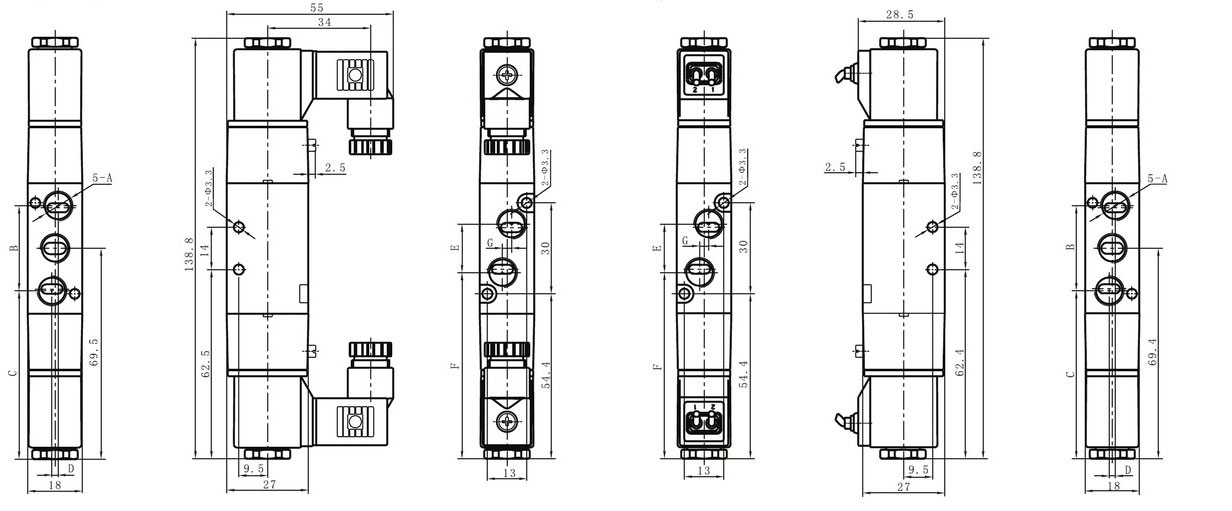

Terminal Grommet
|
Item No |
A |
B |
C |
D |
E |
F |
G |
|
4V110-M5 |
M5 |
14.6 |
27 |
0 |
21.1 |
14 |
0 |
|
4V110-06 |
G1/8” |
14.1 |
28 |
2 |
20.1 |
16 |
3 |

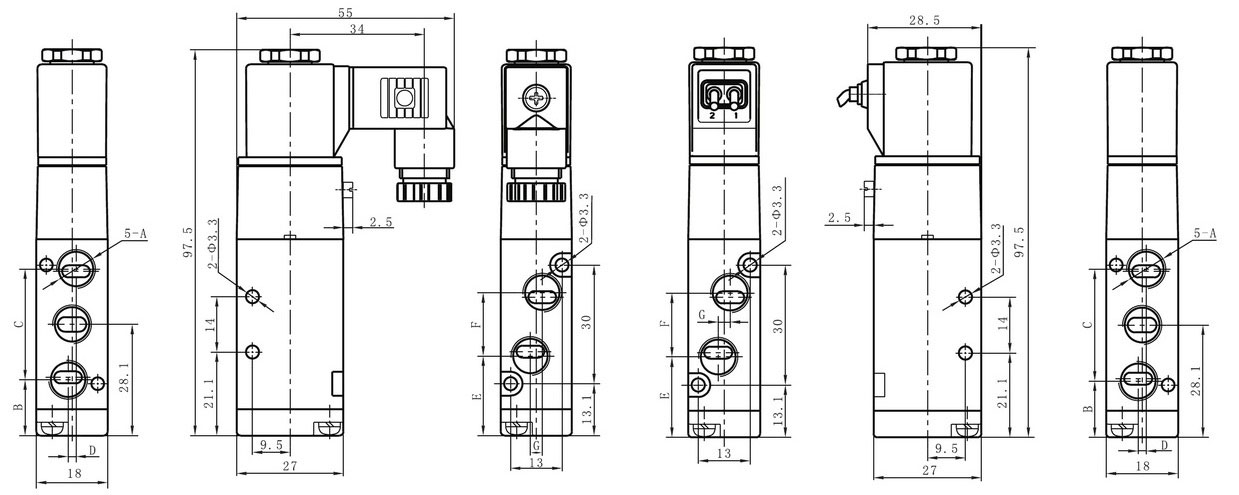

4V120 Dimension
Terminal Grommet
|
Item No |
A |
B |
C |
D |
E |
F |
G |
|
4V120-M5 |
M5 |
27 |
55.9 |
0 |
14 |
62.4 |
0 |
|
4V120-06 |
G1/8” |
28 |
55.5 |
2 |
16 |
61.4 |
3 |

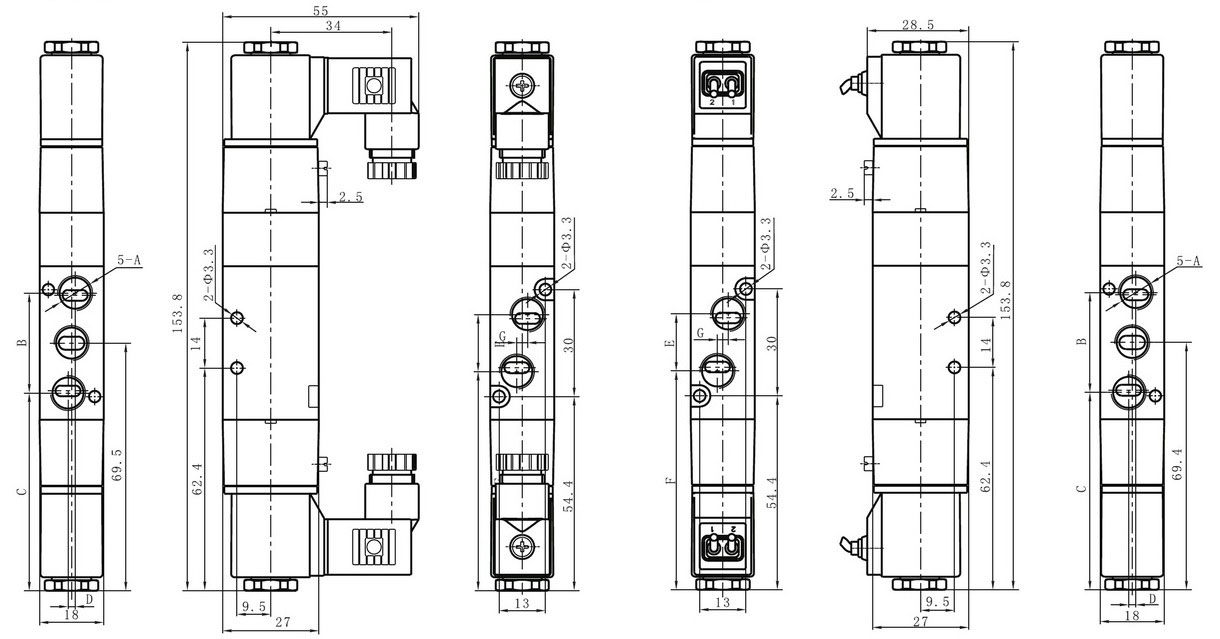

4V130 Dimension
Terminal Grommet
|
Item No |
A |
B |
C |
D |
E |
F |
G |
|
4V130-M5 |
M5 |
27 |
55.9 |
0 |
14 |
62.4 |
0 |
|
4V130-06 |
G1/8” |
28 |
55.5 |
2 |
16 |
61.4 |
3 |
Feature
With solenoid operated for control appropriate flow and direction, provide great performance. Stury body have a long lifespan, perfect for electrically driven pneumatic power control. Two Coil 3 position solenoid valve.
