4M200 Series Soleniod Valve 4M200 Series Soleniod Valve
PRODUCT PARAMETER

4M210-08 NAMUR type pneumatic air solenoid valve for butterfly valve

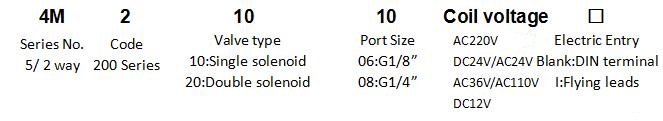

Order code

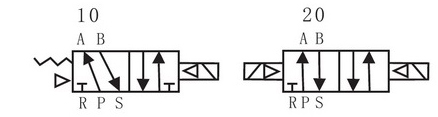

Symbol


Technical parameter

Model

4M210-06

4M220-06

4M210-08

4M220-08

Fluid

Air

Acting

Internal pilot

Valve type

5/2 way

Orifice size

14mm2

16mm2

Lubrication

No required

Port size

In=out=G1/8

In=out=G1/4

Protective class

IP65

Pressure range

0.15-0.8MPa(21~1145Psi)

Proof pressure

1.2MPa(170psi)

Material of body

Aluminum Alloy

Temperature

-5℃~60℃

Response speed

<0.05s

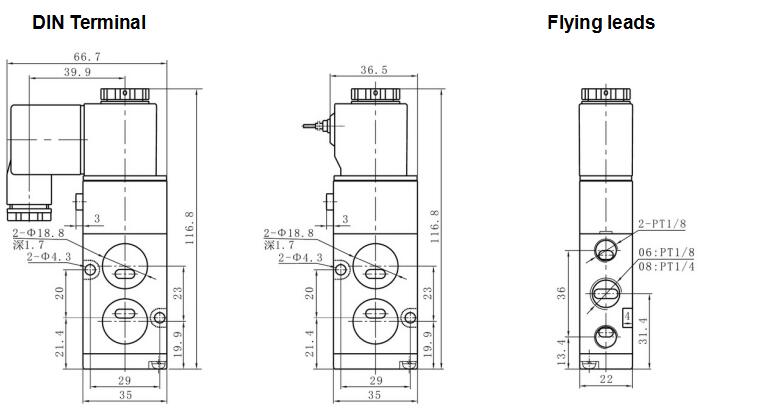

4M210 Dimension

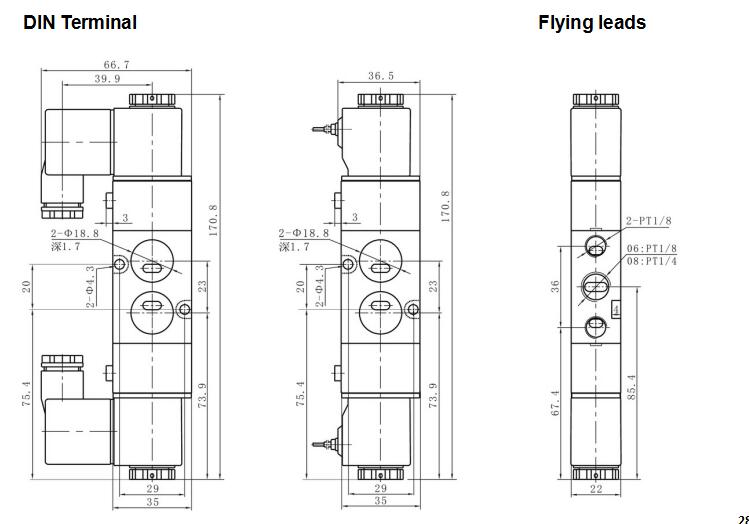

4M220 Dimension


Feature

. Pilot-oriented mode:Internal pilot or external pilot.
. Structure in sliding column mode: good tightness and sensitive reaction.
. Three position solenoid valves have three kinds of central function for your choice.

. Double control solenoid valves have memory function.
. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
. No need to add oil for lubrication.
. It is available to form integrated valve group with the base to save installation space.
. Affiliated manual devices are equipped to facilitate installation and debugging.
. Several standard voltage grades are optional
