Solenoid valve -
4M200L Series Soleniod Valve 4M200L Series Soleniod Valve
PRODUCT PARAMETER

4M210-08L Solenoid Valve for Single Electrical Control Pneumatic Solenoid Valve(4M210-08L,4M220-08L)

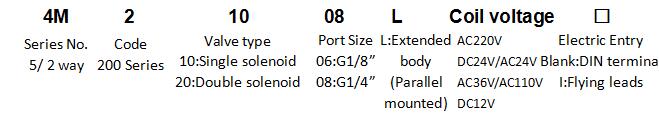

Order code:


Symbol


Technical Parameter

Model

4M210-08L

4M220-08L

Fluid

Air

Acting

Internal pilot

Valve type

5/2 way

Orifice size

14mm2

16mm2

Lubrication

No required

Port size

In=out=G1/4

Protective class

IP65

Pressure range

0.15-0.8MPa(21~1145Psi)

Proof pressure

1.2MPa(170psi)

Material of body

Aluminum Alloy

Temperature

-5℃~60℃

Response speed

<0.05s

Drawing


Feature

Parallel installation, which can be directly connected to the actuator.
