3V400 Series Soleniod Valve 3V400 Series Soleniod Valve
PRODUCT PARAMETER

3V410-10 3/2 way 1/2 inch solenoid air valve

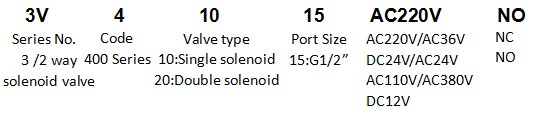

Order code

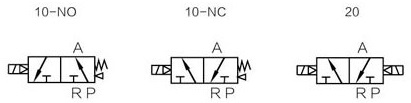

Symbol


Technical parameter

Model

 3V410-15

3V420-15

Fluid

Air

Acting

Internal pilot

Original state

NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO

Lubrication

No required

Orifice size

25.0mm²

30.0mm²

Port size

In=out=G1/2

Protective class

IP65

Pressure range

0.15-0.8MPa(21~114psi)

Proof pressure

1.2MPa(215psi)

Material of body

Aluminum Alloy

Temperature

-5℃~60℃

Response speed

<0.05s

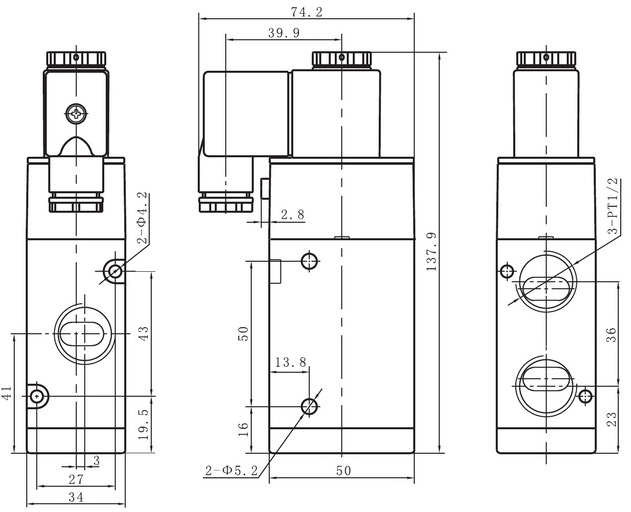

Dimension



Feature

Type: 3 Way 2 Position Single Solenoid Valve with Manual Override normally closed/Spring Return
Coil: 110V AC, LED Light
Ports: 1/2"
