Solenoid valve -
3V300 Series Soleniod Valve 3V300 Series Soleniod Valve
PRODUCT PARAMETER

3V310-10 Pneumatic electric single coil directional control solenoid valve 3V310-08 3V320-08 3V310-10 3V320-10

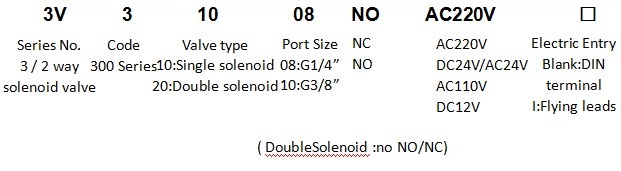

Order code

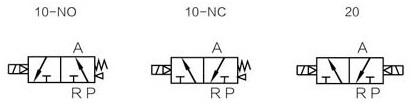

Symbol


Technical parameter

Model

3V310-08

3V320-08

3V310-10

3V320-10

Fluid

Air

Acting

Internal pilot

Original state

NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO

Lubrication

No required

Orifice size

25.0mm²

30.0mm²

Port size

In=out=G1/4

In=out=G3/8

Protective class

IP65

Pressure range

0.15-0.8MPa(21~114psi)

Proof pressure

1.2MPa(215psi)

Material of body

Aluminum Alloy

Temperature

-5℃~60℃

Response speed

<0.05s

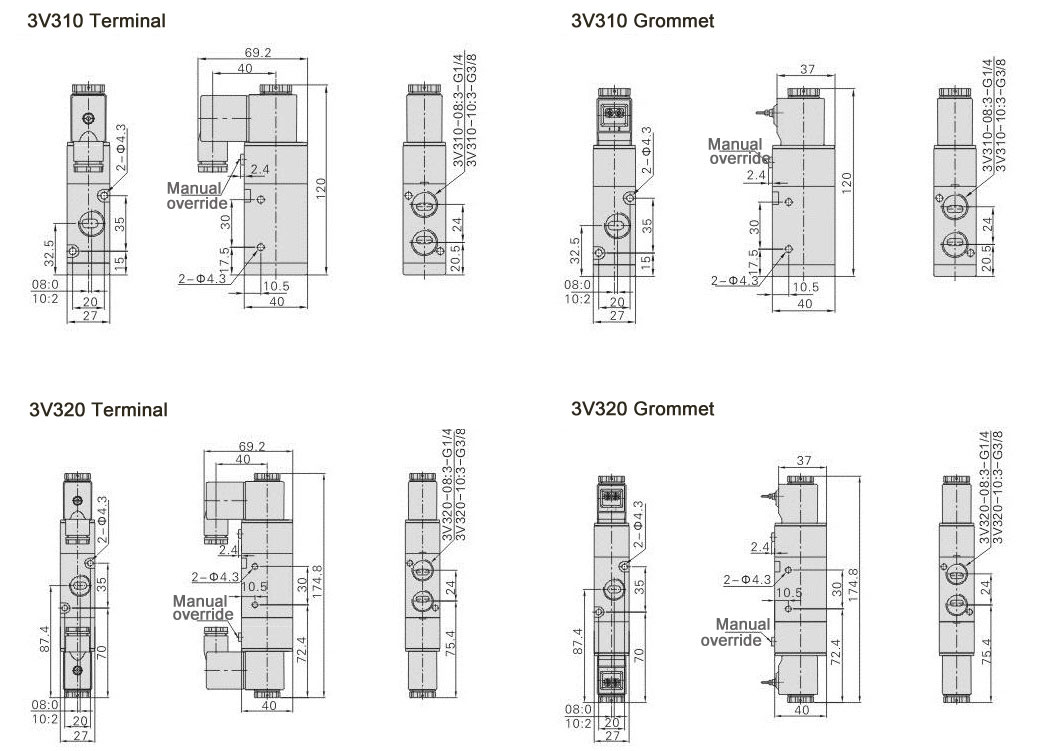

Dimension


Feature

.Pilot-oriented mode:Internal pilot or external pilot.
.Structure in sliding column mode: good tightness and sensitive reaction.
.Double control solenoid valves have memory function.
.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
.No need to add oil for lubrication.
.It is available to form integrated valve group with the base to save installation space.

.Affiliated manual devices are equipped to facilitate installation and debugging.

.Several standard voltage grades are optional.
