Solenoid valve -
3V200 Series Soleniod Valve 3V200 Series Soleniod Valve
PRODUCT PARAMETER

3V210 Pneumatci solenoid valve 3V210-06 3V210-08 3V120-06 3V120-08

Symbol

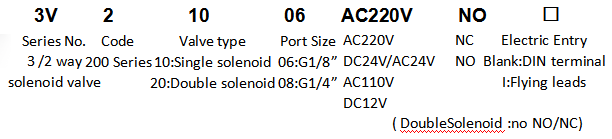

Order code


Technical parameter

Model

3V210-06

3V220-06

3V210-08

3V220-08

Fluid

Air

Acting

Internal pilot

Original state

NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO

Lubrication

No required

Orifice size

14.0mm²

16.0mm²

Port size

In=out=G1/8

In=out=G1/4

Protective class

IP65

Pressure range

0.15-0.8MPa(21~114psi)

Proof pressure

1.2MPa(215psi)

Material of body

Aluminum Alloy

Temperature

-5~60

Response speed

<0.05s

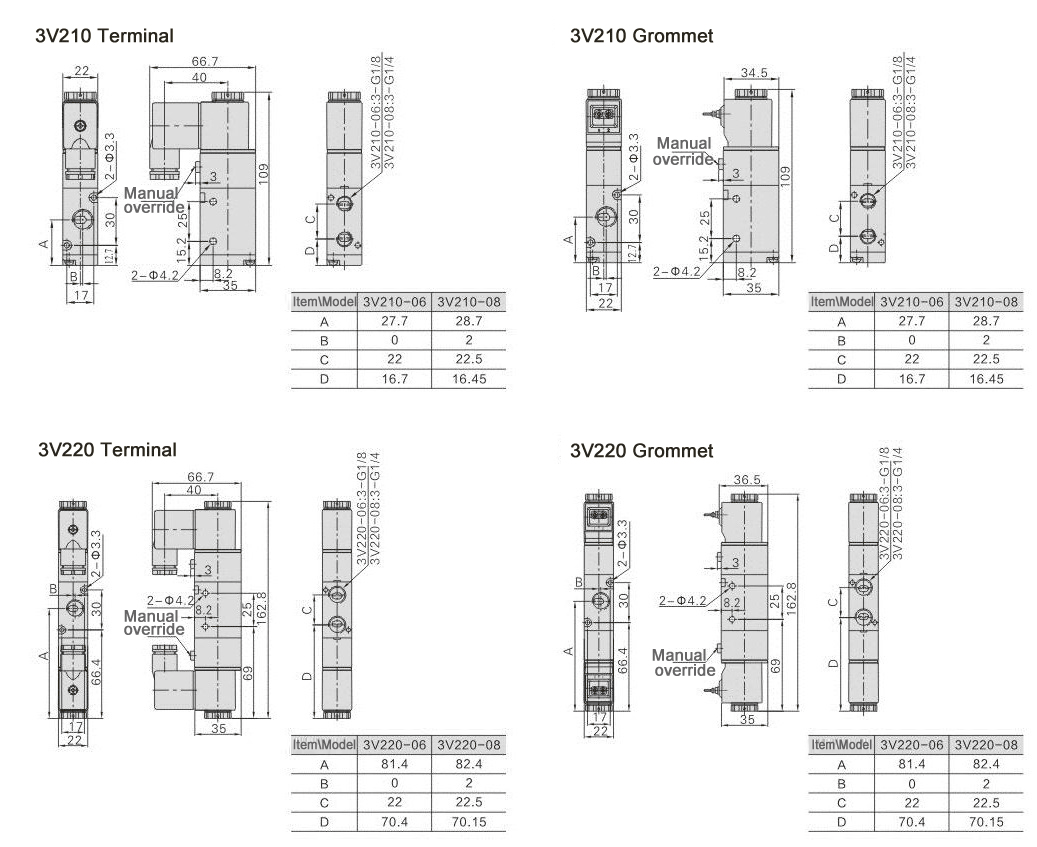

Drawing


Feature

.2 Position 3 Way Solenoid Valve (normally open)
.DC12V【Working Pressure】25~116Psi
.Valve stays open when the coil is de-energized- and it closes when energized..
.High-quality solenoid valve pilot head, sensitive response, response speed 5 times per second, stable performance.
