2P Series Solenoid Valve 2P Series Solenoid Valve
PRODUCT PARAMETER

2P025-06/08 2 Position 2 way plastic normally closed solenoid valve

Symbol

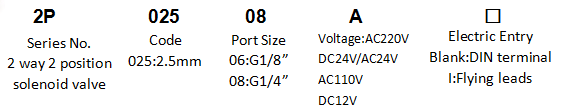

Order code


Technical parameter

Model

2P025-06

2P025-08

Fluid

Air. Water. Oil

Acting

Direct acting

Original state

Normally closed

Initial state

2.5

CV Value

0.23

Port size

G1/8

G1/4

Viscosity limit

Under 20CST

Pressure range

0-0.7MPa(0~100psi)

Proof pressure

1.5MPa(215psi)

Material of body

Nylon 66

Seal material

VITON

Response speed

<0.05s

Drawing


Feature

. Direct acting type normally closed 2-way solenoid valve.
. Can be used to control On/Off of air, inert gas, liquid, and water.
. This valve has one 1/8 inch NPT inlet and one 1/8 inch NPT outlet.
. The valve stays closed when the coil is de-energized, and it opens when energized.
. Compact size and light weight, easy to assemble and disassemble.
