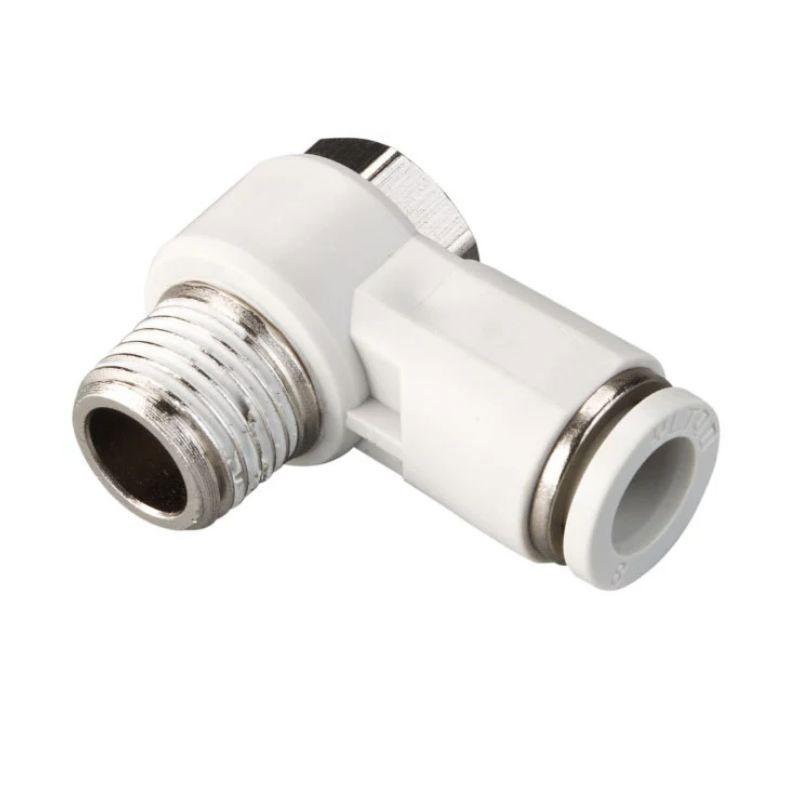

PH Series Pneumatic Plastic Pneumatic Hose Connector Air Pipe Fitting

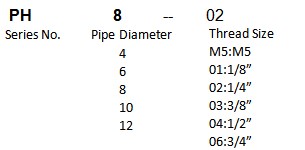

Order code


Technical parameter

Model

PH4-M5

PH4-01

PH4-02



PH6-M5

PH6-01

PH6-02

PH6-03

PH6-04

PH8-01

PH8-02

PH8-03

PH8-04

PH10-01

PH10-02

PH10-03

PH10-04

PH12-02

PH12-03

PH12-04

Fluid

Air

Max. Pressure

1.32Mpa(13.5kgf/cm2)

Pressure range

Normal pressure

0~0.9Mpa(0~9.2kgf/cm2)

Low pressure

-99.99~0Mpa(-750~0mmHg)

Temperature

0℃~60℃

Applicable tube

PU/Nylon tube

Thread size

M5,1/8,1/4,3/8,1/2

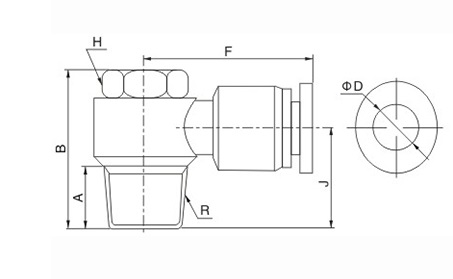

Dimension

Metric Type

φD

A

B

H

F

R

J

PH4-M5

4

4

19

8

20

M5

13

PH4-01

4

9

25

12

23

R1/8

17

PH4-02

4

11

28

15

24.5

R1/4

19

PH6-M5

6

4

19

8

23.5

M5

13

PH6-01

6

9

25

12

23.5

R1/8

17

PH6-02

6

11

28

15

25

R1/4

19

PH6-03

6

11

33

19

28.5

R3/8

20

PH6-04

6

12.5

36.5

22

30.5

R1/2

22.5

PH8-01

8

9

25

12

27

R1/8

17

PH8-02

8

11

28

15

28.5

R1/4

19

PH8-03

8

11

33

19

28.5

R3/8

20

PH8-04

8

12.5

36.5

22

31

R1/2

22.5

PH10-01

10

9

25

12

32

R1/8

17

PH10-02

10

11

28

15

32

R1/4

19

PH10-03

10

11

33

19

32

R3/8

20

PH10-04

10

12.5

36.5

22

34

R1/2

22.5

PH12-01

12

11

28

15

33

R1/8

19

PH12-02

12

11

33

19

35

R1/4

20

PH12-03

12

12.5

36.5

22

36

R3/8

20.5


Feature

.PU series One-touch tube fittings are used in pneumatics piping.

.The tube fittings come in a wide way variety of models to meet all your needs in pneumatics piping

.Even after installation,the direction of the tube can be changed freely.

.Nickel-plated metal body ensures Anti-Corrosion and Anti-Contamination.

.All R and NPT threads are Pre-Coated sealant.

.All cylindrecal threads are standard with O-Ring seals.
