PEG series pneumatic fittings PEG series pneumatic fittings
产品参数

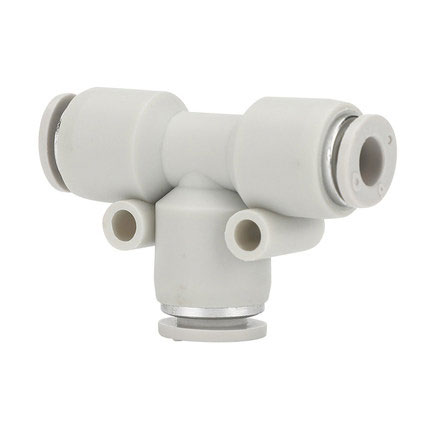

PEG series T type hose fittings 3 way plastic tee tube connector

Order code


Technical parameter

Model

PEG6-4

PEG8-4

PEG8-6

PEG10-6

PEG10-8

 PEG12-8

PEG12-10

Fluid

Air

Max. Pressure

0-1.0Mpa

Temperature

0℃~60℃

Applicable tube

PU /Nylon tube

Outer diameter of Tube

4mm/6mm/8mm/10mm/12mm/14mm/16mm

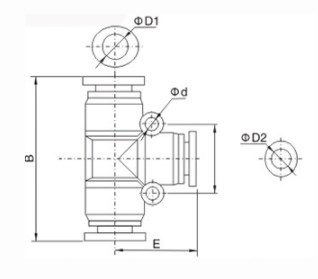

Dimension

Metric Type

ΦD1

ΦD2

B

E

F

φd

PEG6-4

6

4

40

20.5

16

3.5

PEG8-4

8

4

44

23

20

4.5

PEG8-6

8

6

45

23

20

4.5

PEG10-6

10

6

54

28.5

24

4

PEG10-8

10

8

55

28.5

24

4

PEG12-8

12

8

57

29.5

27

5

PEG12-10

12

10

59

29.5

27

5

PEG16-12

16

12

69

35

33

4


Feature

PEG 3 way tee type changing size plastic quick connector pneumatic Push in Fittings are used in pneumatic piping. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping. Even after installation, the direction of the tube can be changed freely
