PG series pneumatic fittings PG series pneumatic fittings
产品参数

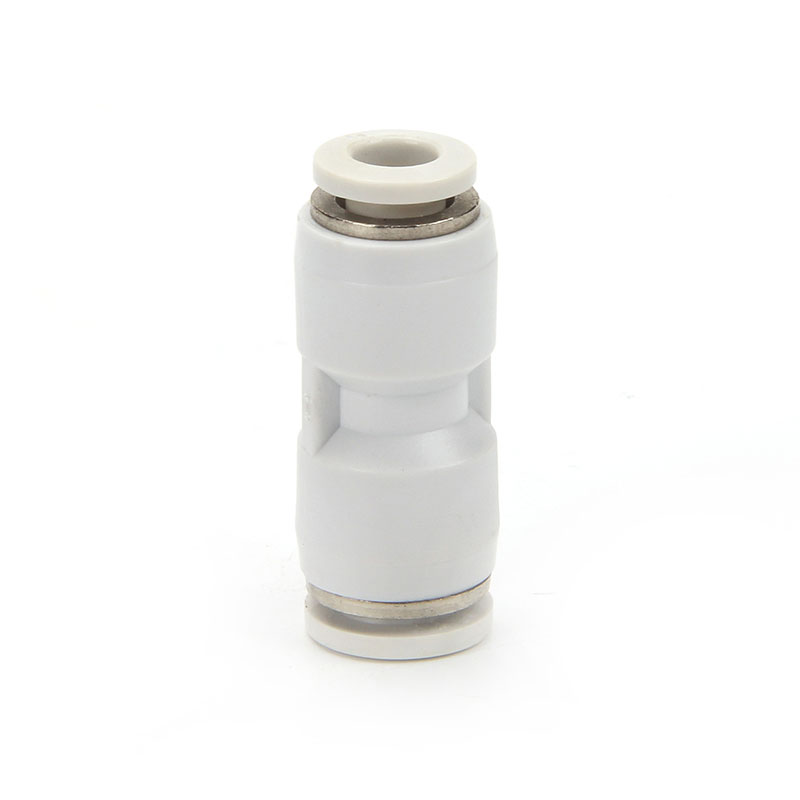

PG series plastic Push-in Fittings Straight One Touch Change Size Reducing Tube Connector

Order code


Technical parameter

Model

PG6-4

PG8-4

PG8-6

PG10-6

PG10-8

PG12-8

PG12-10

PG14-12

PG16-12

Fluid

Air

Max. Pressure

0-1.0Mpa

Temperature

0℃~60℃

Applicable tube

PU / PA / PE / PVC

Outer diameter of Tube

4mm/6mm/8mm/10mm/12mm/14mm/16mm

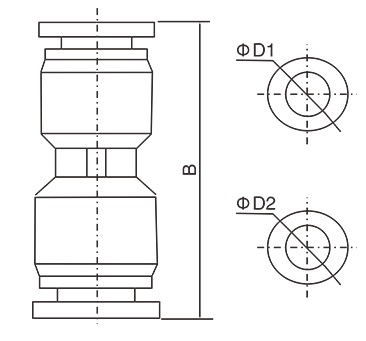

Dimension

Inch Type

Metric Type

ΦD1

ΦD2

B

PG1/4-5/32

PG6-4

6

4

35

PG5/16-5/32

PG8-4

8

4

36.5

PG5/16-1/4

PG8-6

8

6

36.5

PG3/8-1/4

PG10-6

10

6

40

PG3/8-5/16

PG10-8

10

8

40.5

PG1/2-1/4

PG12-6

12

6

43.3

PG1/2-5/16

PG12-8

12

8

44

PG1/2-3/8

PG12-10

12

10

45.5



PG14-10

14

10

45.5



PG14-12

14

12

46



PG16-12

16

12

48.5



PG16-14

16

14

67


Feature

. PG Direct One Touch Change Size Reducing Tube Connector is easy to install and remove.
. High pressure resistance and no release.
. Designed for Polyurethane or Nylon tubing.
. Made from nickel plated brass for corrosion resistance.
. Even after installation, the direction of the tube can be changed freely.
. With the hex type, its convenient to install even in the narrow place.
