PM series pneumatic fittings

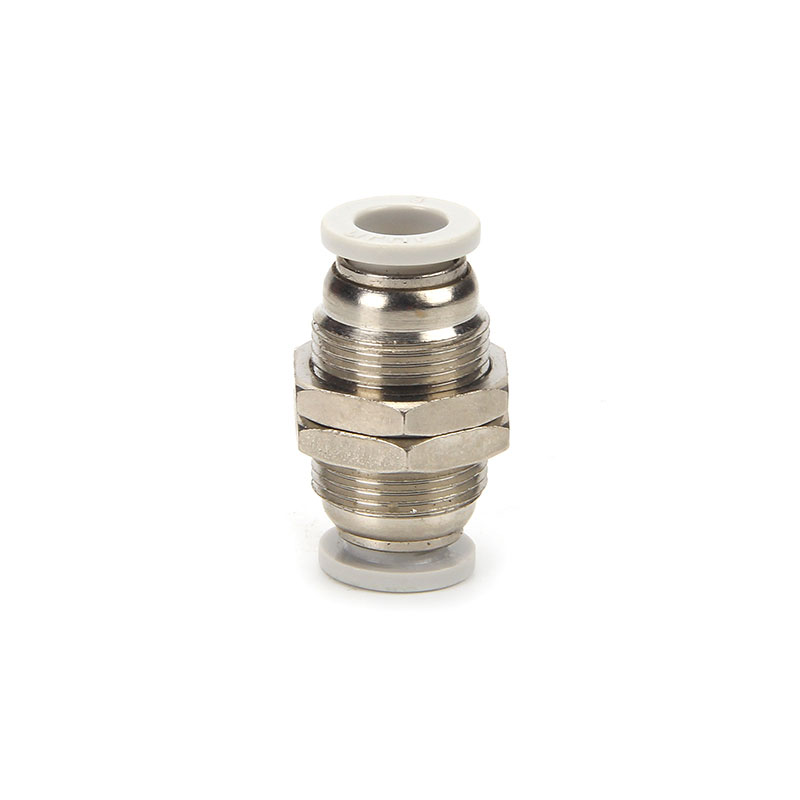

PM series Straight Fitting pneumatic hose quick connector brass bulkhead fitting
Order code
Technical parameter
Model
PM-4
PM-6
PM-8
PM-10
PM-12
PM-14
PM-16
Fluid
Air
Max. Pressure
1.32Mpa(13.5kgf/cm2)
Pressure range
Normal pressure
0~0.9Mpa(0~9.2kgf/cm2)
Low pressure
-99.99~0Mpa(-750~0mmHg)
Temperature
0℃~60℃
Applicable tube
PU/Nylon tube
Tube outer size
4mm,6mm ,8mm,10mm,12mm

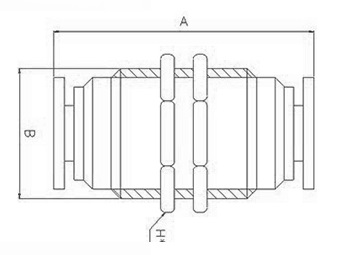

Dimension
Metric Type
A
B
H*2
PM-4
29
M12×1
14
PM-6
33
M14×1
17
PM-8
34
M16×1
19
PM-10
37
M20×1
24
PM-12
40
M22×1
27
Feature
.PM straight nickel-plated brass tube-to-tube Adaptor Pneumatic One touch tube fittings come in a wide variety of models to meet all your needs in pneumatics piping.
.Even after installation, the direction of the tube can be changed freely.
.Nickel-Plated metal body ensures Anti-Corrosion and Anti-Contamination.
