PB Series pneumatic fittings

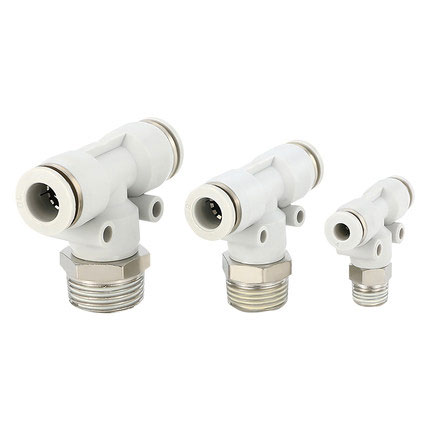

4mm 6mm 8mm 10mm PB series three way T type male pneumatic fittings

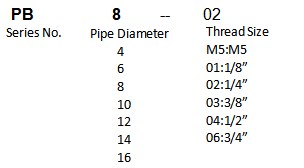

Order code
Technical parameter
Model
PB4-M5
PB4-01
PB4-02
PB4-03
PB6-M5
PB6-01
PB6-02
PB6-03
PB6-04
PB8-M5
PB8-01
PB8-02
PB8-03
PB8-04
PB10-01
PB10-02
PB10-03
PB10-04
PB12-01
PB12-02
PB12-03
PB12-04
PB14-02
PB14-03
PB14-04
PB16-02
PB16-03
PB16-04
PB16-06
Fluid
Air,Water
Max. Pressure
1.32Mpa(13.5kgf/cm2)
Pressure range
Normal pressure
0~0.9Mpa(0~9.2kgf/cm2)
Low pressure
-99.99~0Mpa(-750~0mmHg)
Temperature
0℃~60℃
Applicable tube
PU/Nylon tube
Thread size
1/8”,1/4”,3/8”,1/2”
Material of body
Brass
Dimension
Inch Type
Metric Type

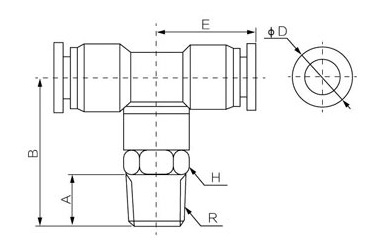

φD
R
A
B
E
H2
φd
PB5/32-M5
PB4-M5
4
M5
4.5
25.4
18.6
10
/
PB5/32-01
PB4-01
4
R1/8
7
25.4
18.6
10
/
PB5/32-02
PB4-02
4
R1/4
9
27.6
18.6
14
/
PB1/4-M5
PB6-M5
6
M5
4.5
26.8
20.8
12
3.5
PB1/4-01
PB6-01
6
R1/8
6.5
37.6
20.8
12
3.5
PB1/4-02
PB6-02
6
R1/4
9
30
20.8
14
3.5
PB1/4-03
PB6-03
6
R3/8
10
30.6
20.8
17
3.5
PB1/4-04
PB6-04
6
R1/2
10
32.5
20.8
21
3.5
PB5/16-01
PB8-01
8
R1/8
8
31.5
20.9
14
4.5
PB5/16-02
PB8-02
8
R1/4
10
33
20.9
14
4.5
PB5/16-03
PB8-03
8
R3/8
10
33.6
20.9
17
4.5
PB5/16-04
PB8-04
8
R1/2
11
35
20.9
21
4.5
PB3/8-01
PB10-01
10
R1/8
8
37
27.8
17
4
PB3/8-02
PB10-02
10
R1/4
10
38
27.8
17
4
PB3/8-03
PB10-03
10
R3/8
10
38
27.8
17
4.5
PB3/8-04
PB10-04
10
R1/2
11
39
27.8
21
4.5
PB1/2-01
PB12-01
12
R1/8
8
37.5
29.5
19
5
PB1/2-02
PB12-02
12
R1/4
10
40
29.5
19
5
PB1/2-03
PB12-03
12
R3/8
10
40
29.5
19
5
PB1/2-04
PB12-04
12
R1/2
11
41
29.5
21
5
PB14-03
14
R3/8
11
46.3
34.5
24
4
PB14-04
14
R1/2
12
47.3
34.5
27
4
Feature
PB Tee Shape Push-to Connect Fittings
Material：Plastic and Copper
4/6/8/10/12mm OD x 1/8 1/4 3/8 1/2 NPT
Application：PU tube hose, nylon tube
Easy to install: Available in various styles and models .good sealing performance,long service life
