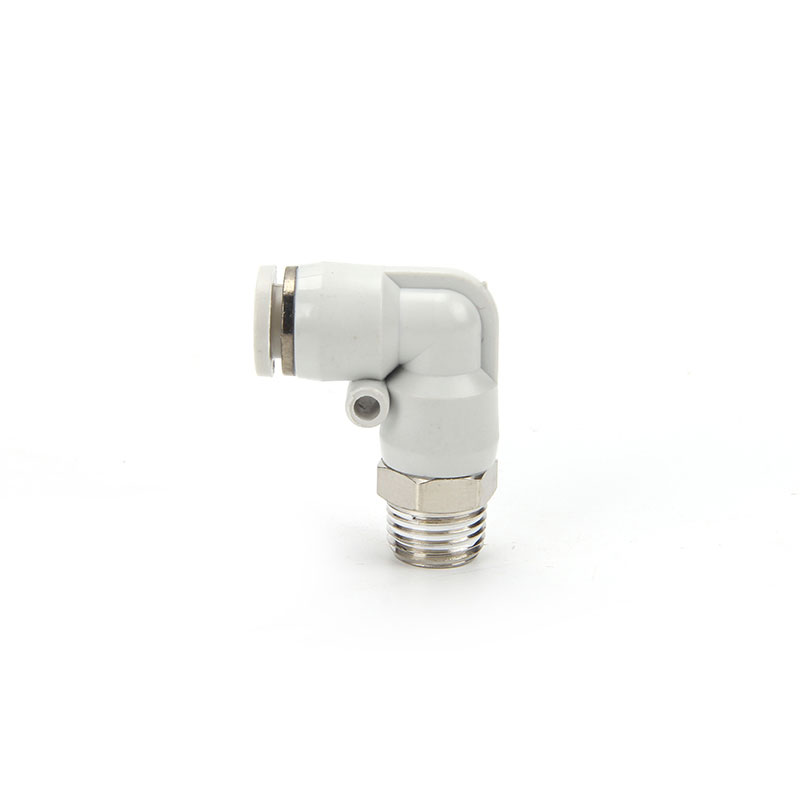

PL series G thread Plastic Pneumatic Push to Connect Fittings

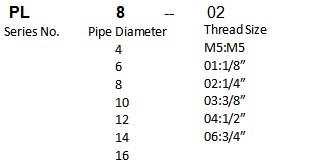

Order code


Technical parameter

Model

PL4-M5

PL4-01

PL4-02

PL4-03

PL6-M5

PL6-01

PL6-02

PL6-03

PL6-04

PL8-M5

PL8-01

PL8-02

PL8-03

PL8-04

PL10-01

PL10-02

PL10-03

PL10-04

PL12-01

PL12-02

PL12-03

PL12-04

PL14-02

PL14-03

PL14-04

PL16-02

PL16-03

PL16-04

PL16-06

Fluid

Air

Max. Pressure

1.32Mpa(13.5kgf/cm2)

Pressure range

Normal pressure

0~0.9Mpa(0~9.2kgf/cm2)

Low pressure

-99.99~0Mpa(-750~0mmHg)

Temperature

0℃~60℃

Applicable tube

PU/Nylon tube

Thread size

1/8,1/4,3/8,1/2

Material of body

Brass

Dimension

Inch Type

Metric Type

φD

R

A

B

H

E

φd

PL5/32-M5

PL4-M5

4

M5

4.5

25

10

19.7

/

PL5/32-01

PL4-01

4

R1/8

7

26.5

10

19.7

/

PL5/32-02

PL4-02

4

R1/4

9

28

14

19.7

/

PL1/4-M5

PL6-M5

6

M5

4.5

27.5

12

20.8

3.5

PL1/4-01

PL6-01

6

R1/8

7

27.5

12

20.8

3.5

PL1/4-02

PL6-02

6

R1/4

9

29.5

14

20.8

3.5

PL1/4-03

PL6-03

6

R3/8

10

30.5

17

20.8

3.5

PL1/4-04

PL6-04

6

R1/2

11

32

21

20.8

3.5

PL5/16-01

PL8-01

8

R1/8

8

31.7

14

23.5

4.5

PL5/16-02

PL8-02

8

R1/4

10

33.8

14

23.5

4.5

PL5/16-03

PL8-03

8

R3/8

10

33.8

17

23.5

4.5

PL5/16-04

PL8-04

8

R1/2

11

35.5

21

23.5

4.5

PL3/8-01

PL10-01

10

R1/8

8

35.5

17

27.4

4.5

PL3/8-02

PL10-02

10

R1/4

10

37.5

17

27.4

4.5

PL3/8-03

PL10-03

10

R3/8

10

38

17

27.4

4.5

PL3/8-04

PL10-04

10

R1/2

11

38.6

21

27.4

4.5

PL1/2-01

PL12-01

12

R1/8

8

38

19

30.3

5

PL1/2-02

PL12-02

12

R1/4

10

39.5

19

30.3

5

PL1/2-03

PL12-03

12

R3/8

10

40.5

19

30.3

5

PL1/2-04

PL12-04

12

R1/2

11

42

21

30.3

5

PL14-03

14

R3/8

12

42.5

24

30.3

4

PL14-04

14

R1/2

15

45

24

30.3

4

PL16-03

16

R3/8

15

50

24

34

4

PL16-04

16

R1/2

15

50.5

27

34

4


Feature

Pure Copper Surface Copper-plated Nickel, Stronger and Longer Life.
Male Elbow Push to Connect Fittings is Sturdy and Durable and Has a Long Service Life.
Easy Installation and Disassembly, Good Sealing Performance.
It Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.
You Can Easily Insert or Pull out the Trachea Without Any Tools
The Clip of Connecting Air Pipe is Made of Strong Plastic Material, Which is Not Easy to Fall off After Connection Adopt Sealing Component, Keep Good Sealing, Not Easy to Leak.
Freely Change Pipeline Direction After Installation,Easy to Insert or Pull Trachea Manually Without Tools.
