Fittings -
PC Series pneumatic fittings PC Series pneumatic fittings
产品参数

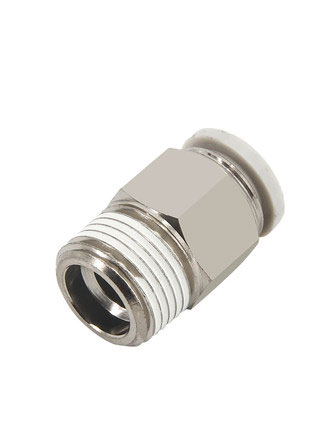

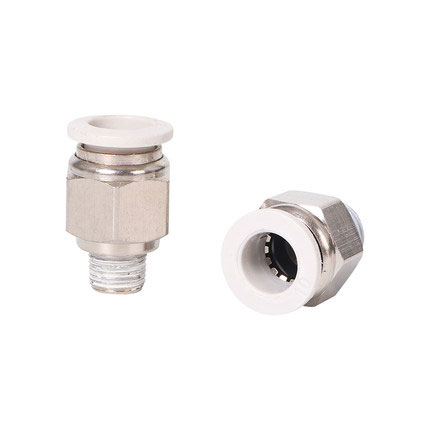

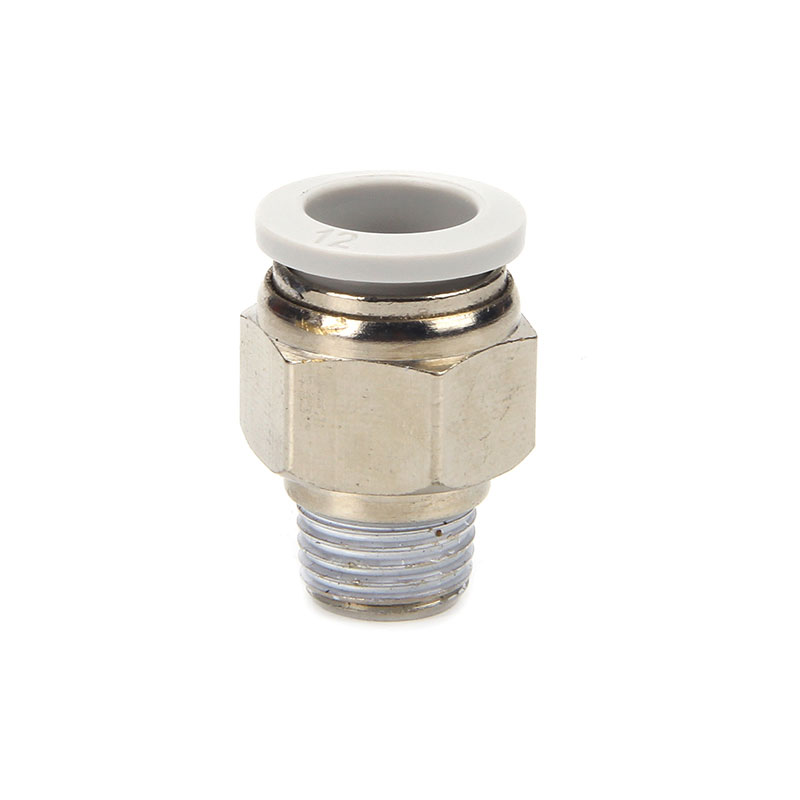

PC series Male Straight One Touch Brass Pneumatic Fitting

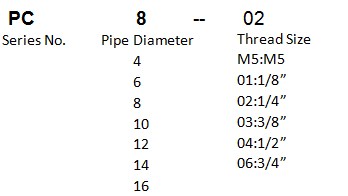

Order code


Technical parameter

Model

PC4-M5

PC4-01

PC4-02

PC4-03

PC6-M5

PC6-01

PC6-02

PC6-03

PC6-04

PC8-M5

PC8-01

PC8-02

PC8-03

PC8-04

PC10-01

PC10-02

PC10-03

PC10-04

PC12-01

PC12-02

PC12-03

PC12-04

PC14-02

PC14-03

PC14-04

PC16-02

PC16-03

PC16-04

PC16-06

Fluid

Air

Max. Pressure

1.32Mpa(13.5kgf/cm2)

Pressure range

Normal pressure

0~0.9Mpa(0~9.2kgf/cm2)

Low pressure

-99.99~0Mpa(-750~0mmHg)

Temperature

0℃~60℃

Applicable tube

PU/Nylon tube

Thread size

1/8,1/4,3/8,1/2

Material of body

Brass

Dimension

Inch Type

Metric Type

φD

R

A

B

H1

H2

PC5/32-M5

PC4-M5

4

M5

4.5

21.8

10

2

PC5/32-01

PC4-01

4

R1/8

6.5

20.5

10

3

PC5/32-02

PC4-02

4

R1/4

9

19.5

14

3

PC1/4-M5

PC6-M5

6

M5

4.5

22.8

12

2

PC1/4-01

PC6-01

6

R1/8

6.5

22.2

12

4

PC1/4-02

PC6-02

6

R1/4

9

22.2

14

4

PC1/4-03

PC6-03

6

R3/8

10

21.5

17

4

PC1/4-04

PC6-04

6

R1/2

10

23

21

4

PC5/16-01

PC8-01

8

R1/8

8

26.8

14

4

PC5/16-02

PC8-02

8

R1/4

10

25.2

14

6

PC5/16-03

PC8-03

8

R3/8

10

22.2

17

6

PC5/16-04

PC8-04

8

R1/2

11

23.7

21

6

PC3/8-01

PC10-01

10

R1/8

8

30.7

17

4

PC3/8-02

PC10-02

10

R1/4

10

31

17

6

PC3/8-03

PC10-03

10

R3/8

10

29.5

17

8

PC3/8-04

PC10-04

10

R1/2

11

25.2

21

8

PC1/2-01

PC12-01

12

R1/8

8

31.7

19

4

PC1/2-02

PC12-02

12

R1/4

10

33.2

19

6

PC1/2-03

PC12-03

12

R3/8

10

30

19

8

PC1/2-04

PC12-04

12

R1/2

11

30

21

8

-

PC14-03

14

R3/8

11

38

24

6

-

PC14-04

14

R1/2

12

39

24

8

-

PC16-03

16

R3/8

13

39

24

10

-

PC16-04

16

R1/2

15

39

27

12

Feature

Easy to connect tube by one touch, and the is applicable for Polyurethane tubing and Nylon tubing
The brass components are nickel plated brass materials
PC series Pneumatic fittings are equipped with a gasket, Stainless steel grab-ring to grip nylon or PU tubing.
