XQ2306(Xinyi) Series Mechanical Valves XQ2306(Xinyi) Series Mechanical Valves
产品参数

XQ230410 XQ230610 Two-way three position Xinyi type Plunger Roller lever Mechanical Control Valve

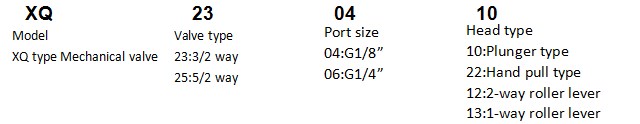

Order code

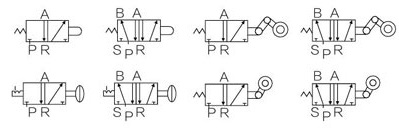

Symbol


Technical parameter

Model

Type

Port size

Nominal

dia.mm

Operating force

Operating

pressure

Fluid

temperature

Ambient

temperature

Service life

XQ230410

3/2

G1/8

4

26N

0~1.0MPa

-10~+60

5-60

10 million times

XQ230610

G1/4

6

35N

XQ250410

5/2

G1/8

4

30N

XQ250610

G1/4

6

40N

XQ230411

3/2

G1/8

4

26N

XQ230611

G1/4

6

35N

XQ250411

5/2

G1/8

4

30N

XQ250611

G1/4

6

40N

XQ230412

3/2

G1/8

4

16N

XQ230612

G1/4

6

24N

XQ250412

5/2

G1/8

4

19N

XQ250612

G1/4

6

27N

XQ230413

3/2

G1/8

4

17.8N

XQ230613

G1/4

6

20N

XQ250413

5/2

G1/8

4

21N

XQ250613

G1/4

6

23N

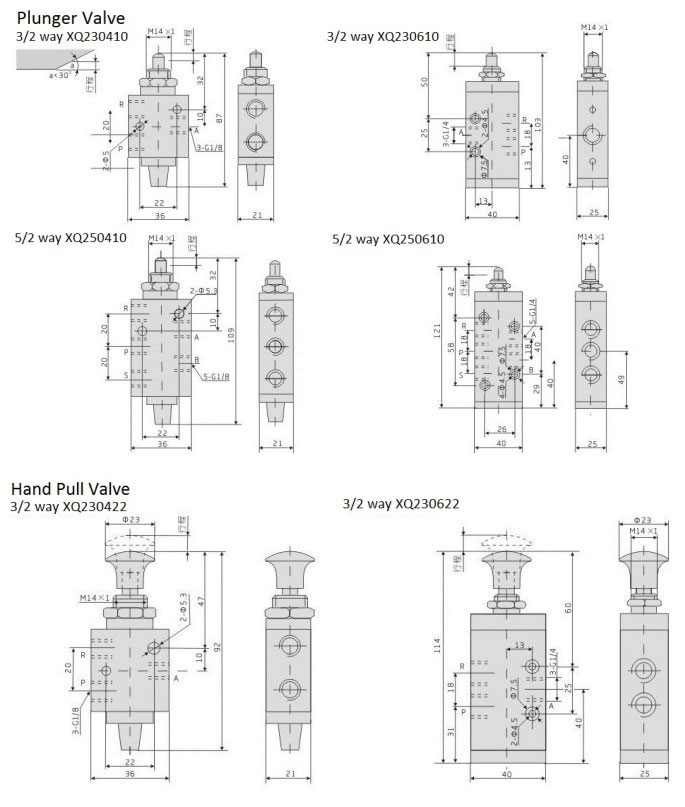

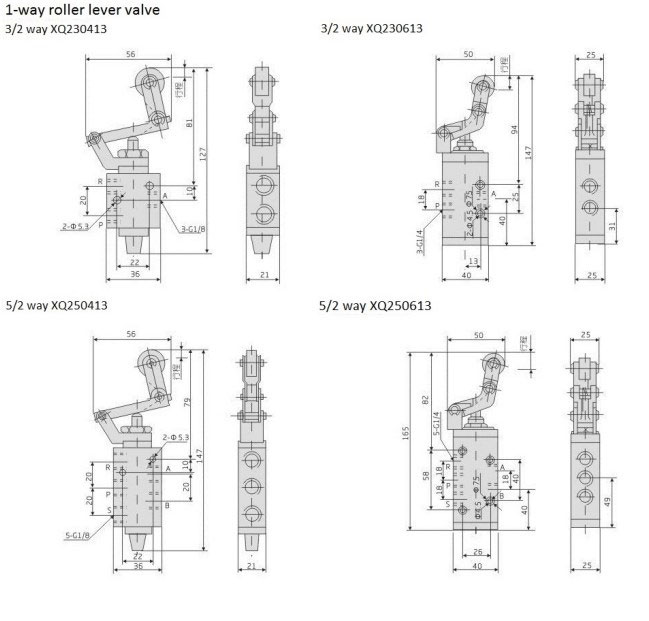

Dimension



Feature

2 position 3 way mechanical valve

Mechanical valves are reversing valves controlled by external mechanical force. When the external force disappears, the valve will reset itself and reverse the direction.

Normally used to control the output signal of pneumatic systems.

Unidirection Roller Lever mechanical valve.
