Shuttle valve/Other Valve -
K23JC3-L6 mechanical reversing valve K23JC3-L6 mechanical reversing valve
产品参数

K23JC3-L6 Pneumatic 3/2 Way roller lever paper cup machine Mechanical Reversing Valve

Order code


Symbol


Techanical parameter

Model

K23JC3-L6

K23JC3-L8

Diameter

6mm

8mm

Media

Compressed Air

effective area

10mm2

12mm2

Port size

In=out=exhaust=G1/4

In=out=exhaust=G3/8

leakage

50cm3/min

Pressure range

0-0.8MPa

Temperature

5-50

Durability

200 million times

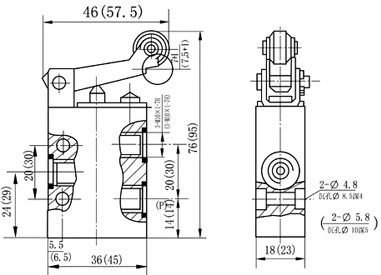

Dimension


Feature

.Roller mechanical valve is an automatic component operated by pressure oil. It is controlled by pressure oil of pressure valve.    It is usually used in combination with solenoid pressure valve.
. High cycle life.
.It can be divided into direct type and pilot type.
.K23JC3 Roller mechanical control valve can be used for Paper cup machine reversing valve
