Hand pull Valve -
3R Series Hand Pull Valve 3R Series Hand Pull Valve
产品参数

3/2 way 3R110-06/3R210-08/3R310-10/3R410-15 hand lever manual control pneumatic hand push pull air valve

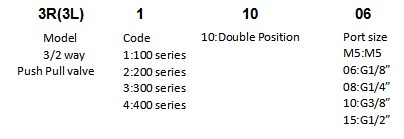

Order code


Symbol


Technical parameter

Model

3R110-M5

(3L110-M5)

3R110-06

(3L110-06)

3R210-06

(3L210-06)

3R210-08

(3L210-08)

3R310-08

(3L310-08)

3R310-10

(3L310-10)

3R410-15

(3L410-15)

Fluid

Air

Acting

Manual control direct acting type

Valve type

3/2 way push pull valve

Orifice size

5.5mm2

12mm2

14mm2

16mm2

25mm2

30mm2

50mm2

Lubrication

No required

Port size

M5

G1/8

G1/4

G3/8

G1/2

Protective class

IP65

Pressure range

0-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

-20℃~60℃

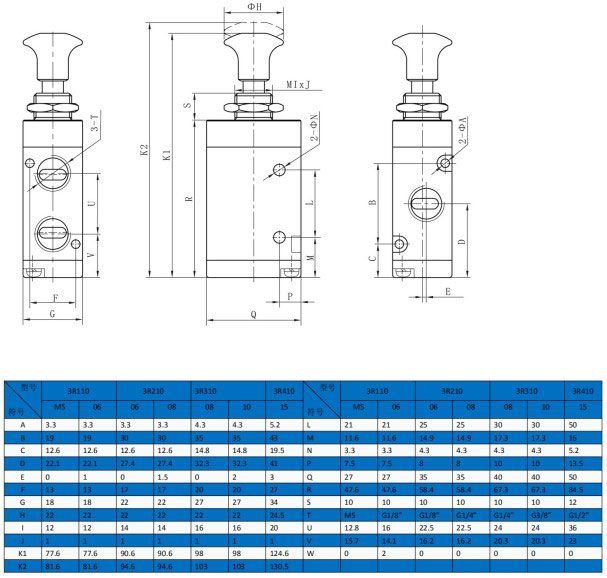

Dimension


Feature

3 way 2 position hand Push-pull valve is manual operation, smooth action, accurate and reliable positioning;

Sliding column structure, good sealing, small volume, light weight, easy disassembly;

Hand draw valve is panel installation, easy to install.
