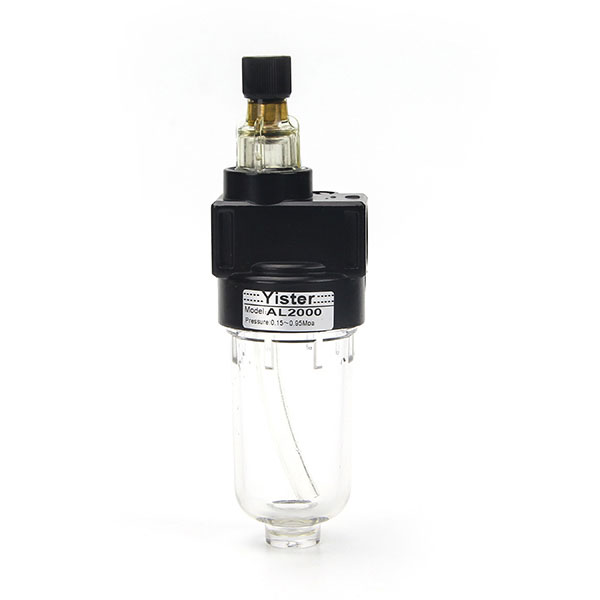

AL、BL Series Lubricator
Airtac type air preparation AL2000 BL2000 BL3000 BL4000 series water oil air lubricator
Order code
Symbol
Technical parameter
Model
AL2000
BL2000
BL3000
BL4000
Port size
1/4”
1/4”
3/8”
1/2”
Working medium
Air
Proof Pressure
1.5Mpa(15.3kgf/cm2)
Temperature
5℃~60℃
Filter bowl capacity
15CC
60CC
60CC
60CC
Suggested Lubricating Oil
Turbine No.1 Oil(ISOVG32)
Body material
Aluminum alloy
Bowl material
PC
Bowl guard
Without guard
With guard
With guard
With guard
With guard

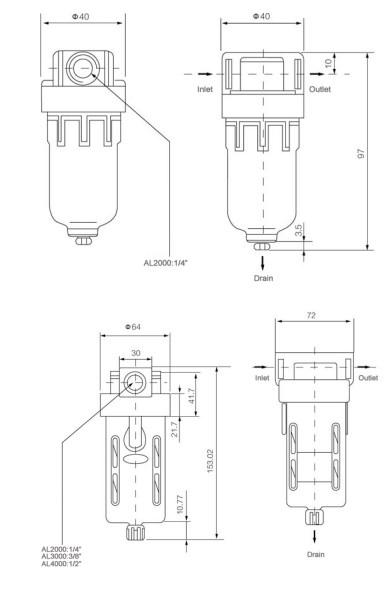

Dimension
Feature
.Airtac type AL2000 BL2000 BL3000 BL4000 series water oil air lubricator is designed with delicate and compact, which is convenient for installation and application.
. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
. In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).
