Air Source Treatment Unit -
AFC、BFC Series FR.L. UNITS AFC、BFC Series FR.L. UNITS
产品参数

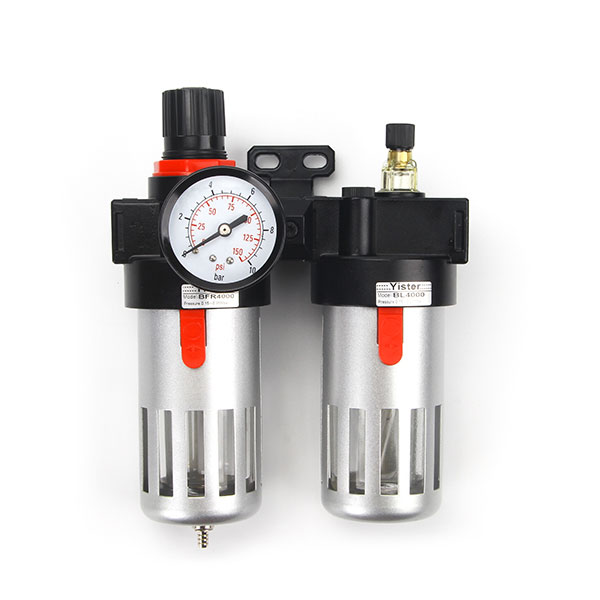

AFC2000 BFC2000/BFC3000/BFC4000 Two union combination Pneumatic Air Filter Regulator And Lubricator

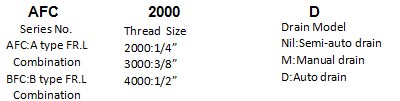

Order code

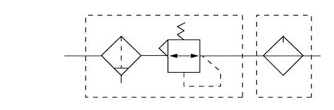

Symbol


Technical parameter

Model

AFC2000

BFC2000

BFC3000

BFC4000

Combinations

Filter

AFR2000

BFR2000

BFR3000

BFR4000

Lubricator

AL2000

BL2000

BL3000

BL4000

Port size

1/4

1/4

3/8

1/2

Range pressure

0.05~0.85Mpa

Proof Pressure

1.5Mpa(15.3kgf/cm2)

Max.Operating Pressure

0.95Mpa(10.2kgf/cm2)

Temperature

5℃~60℃

Filtration

40μm

Suggested Lubricating Oil

Turbine No.1 Oil(ISOVG32)

Filter bowl capacity

15CC

60CC

60CC

60CC

Lubricator bowl capacity

25CC

90CC

90CC

90CC

Body material

Aluminum alloy

Bowl material

PC

Bowl guard

Without guard

With guard

With guard

With guard

With guard

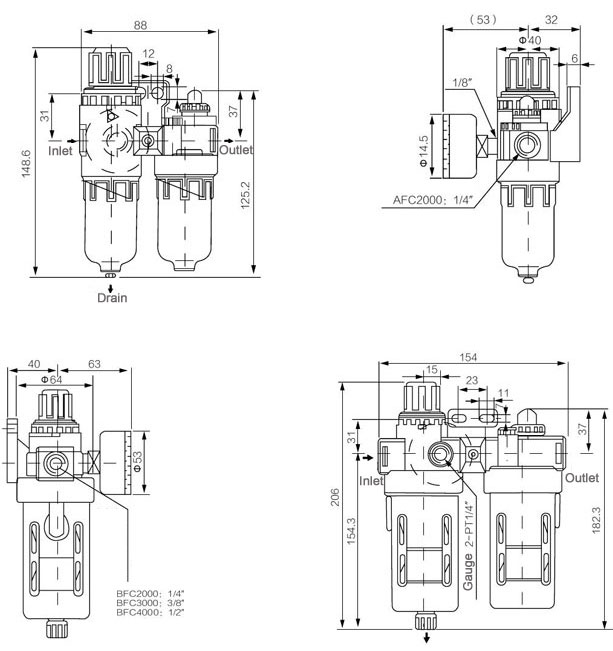

Dimension


Feature

.Airtac type FRL air source treatment units AFC air combination includes AFR2000/BFR2000/BFR3000/BFR4000 air filter regulator+AL2000/BL2000/BL3000/BL4000 air oil lubricator two units, parts number are AFC2000 BFC2000 BFC3000 BFC4000
.Simple structure in linear type ,easy in installation and maintenance
. Adopting advanced world famous brand components in
pneumatic parts ,electric parts and operation parts
. High pressure double crank to control the die opening and closing.
.Running in a high automatization and intellectualization,no pollution
