VFA5 Series Air Control Valve
VFA Series VFA5120 VFA5220 VFA5320 5/2 Way Aluminum Alloy Single Electrical Air Flow Control Valve

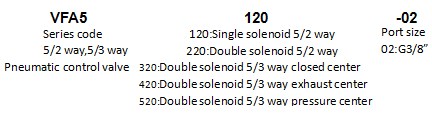

Order code
Symbol
Technical parameter
Model
VFA5120
VFA5220
VFA5320
VFA5420
VFA5520
Fluid
Air
Valve type
5/2 way
5/3 way
Orifice size
18mm2
45mm2
Port size
In=out=Exhaust=G3/8”
Protective class
IP65
Pressure range
0.15-0.9MPa
Proof pressure
1.2MPa
Material of body
Aluminum Alloy
Temperature
-5℃~50℃
Response
speed
<0.05s

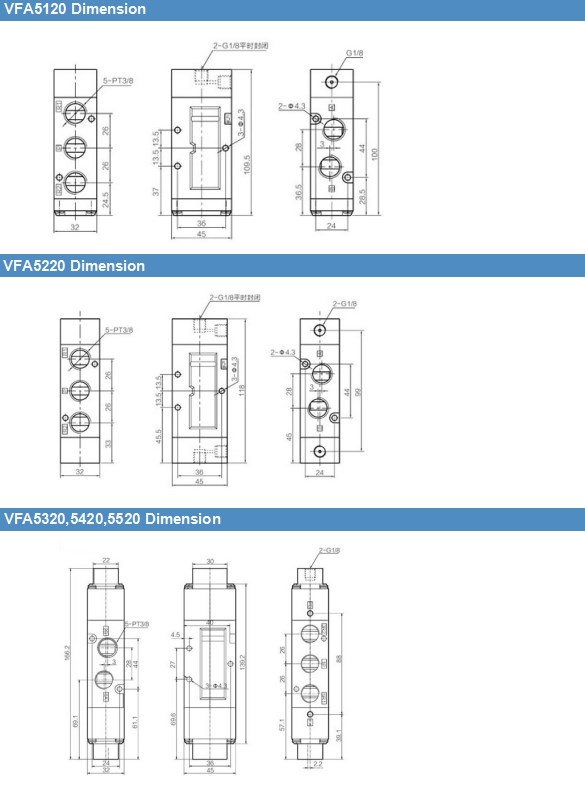

Dimension
Feature
.VFA Series VFA5120 VFA5220 VFA5320 5/2 Way Aluminum Alloy Single Electrical Air Flow Control Valve
.Easy to install and remove, easy to operate, no additional tools or accessories required.
.Quality testing provides maximum reliability and performance even in the harshest environments.
.Widely used in various pneumatic instruments and other pneumatic equipment.
