CDM2B Series Stainless steel Mini Cylinder
CM2B CDM2B double acting piston rod Stainless Steel Mini Cylinder with magnet

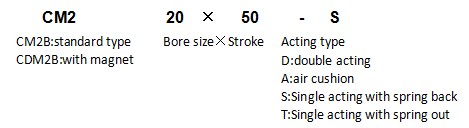

Order code
Symbol
Technical parameter
Bore size(mm)
16
20
25
32
40
Acting type
Double acting,Single acting:spring back/spring out
Fluid
Air
Operating pressure
0.1~0.7MPa
Proof pressure
1.0MPa
Temperature ℃
-5~60
Cushion type
No cushion
Port size
M5
1/8”
1/4”
Body material
Stainless Steel
Stroke
Bore size(mm)
Standard stroke(mm)
Max std stroke(mm)
Max Stroke(mm)
16
25 50 75 100 125 150 175 200
300
500
20
25 50 75 100 125 150 175 200
500
1000
25
25 50 75 100 125 150 175 200 250 300
500
1000
32
25 50 75 100 125 150 175 200 250 300
500
1000
40
25 50 75 100 125 150 175 200 250 300
500
1000

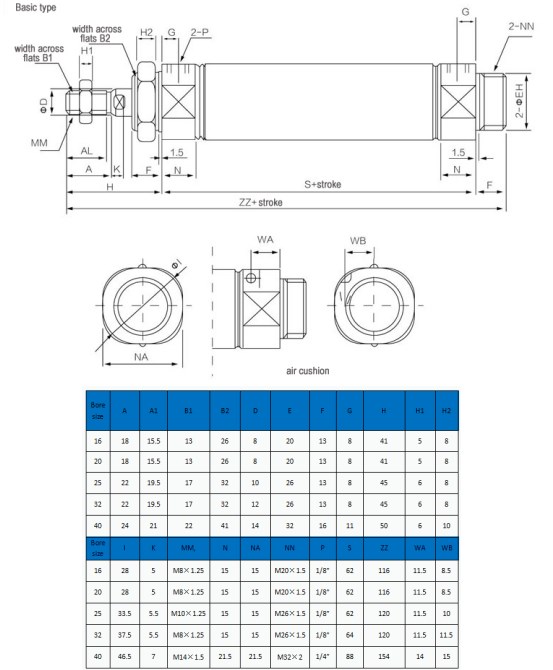

Dimension
Feature
.CM2,CM2B,CDM2B Series Stainless Steel Round Body Double Acting Single Rod Mini Pneumatic Air Cylinder is female rod end as standard.
・Easy fine adjustment of auto switch position
・Single clevis and trunnion pivot brackets are available.
・Part numbers with a rod end bracket and/or pivot bracket are available.
(It is not necessary to order a bracket for the applicable cylinder separately.)
